MSR 2.0 Base Column Z800
626100-9300-800
EUR 1,181.00
excluding VAT
In stock
Do you have questions?
Overall
Product type
Sensor Rack
Application
Store
Machine
SPECTRUM, CONTURA, PRISMO
Material
Aluminum
Details

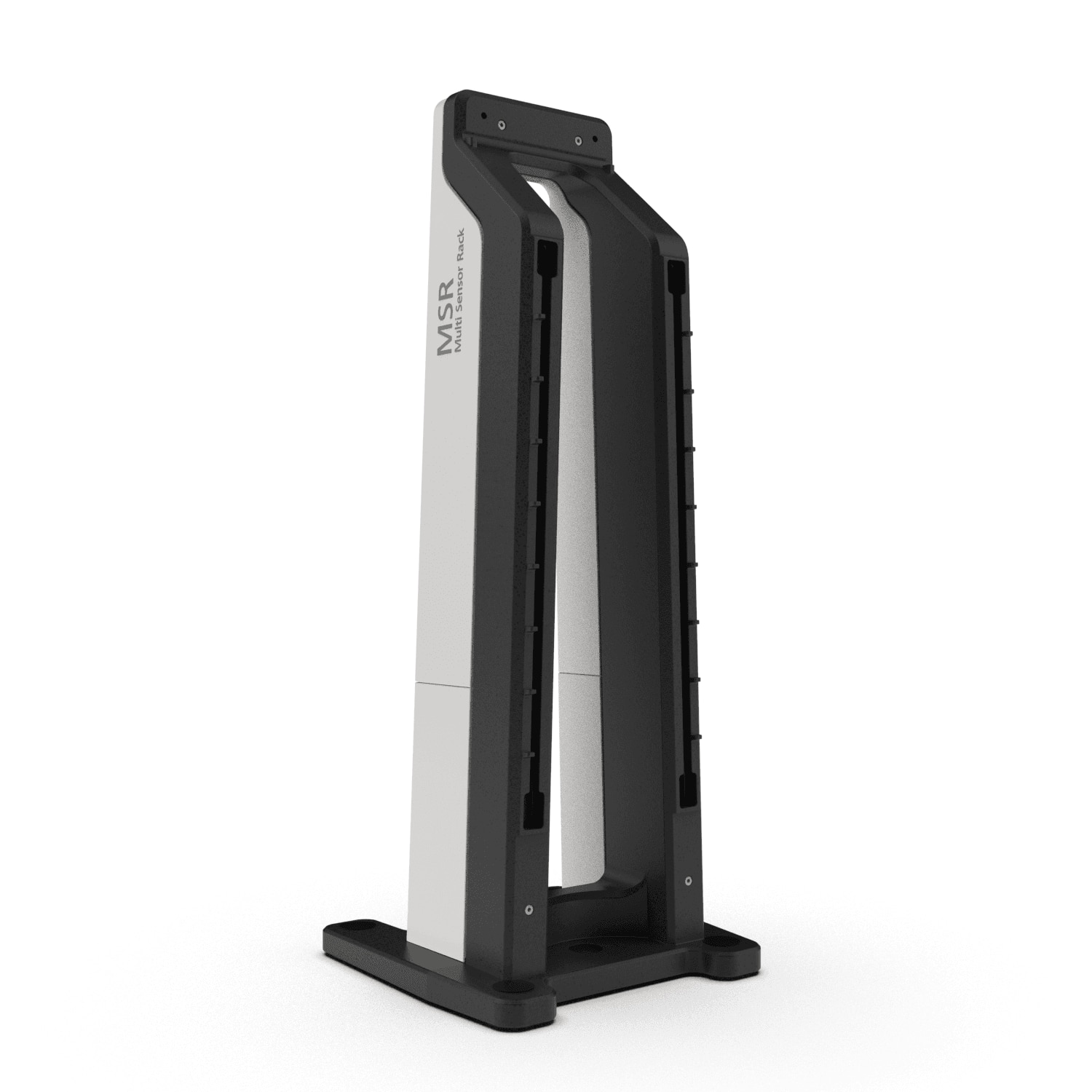

Multi-Sensor-Rack (MSR 2.0) column, for measuring range Z <gt/>= 800 mm
- Actual upper storage bar height = 680 mm
- - Fixed rigid column
- - for measuring range Z <gt/>= 800 mm

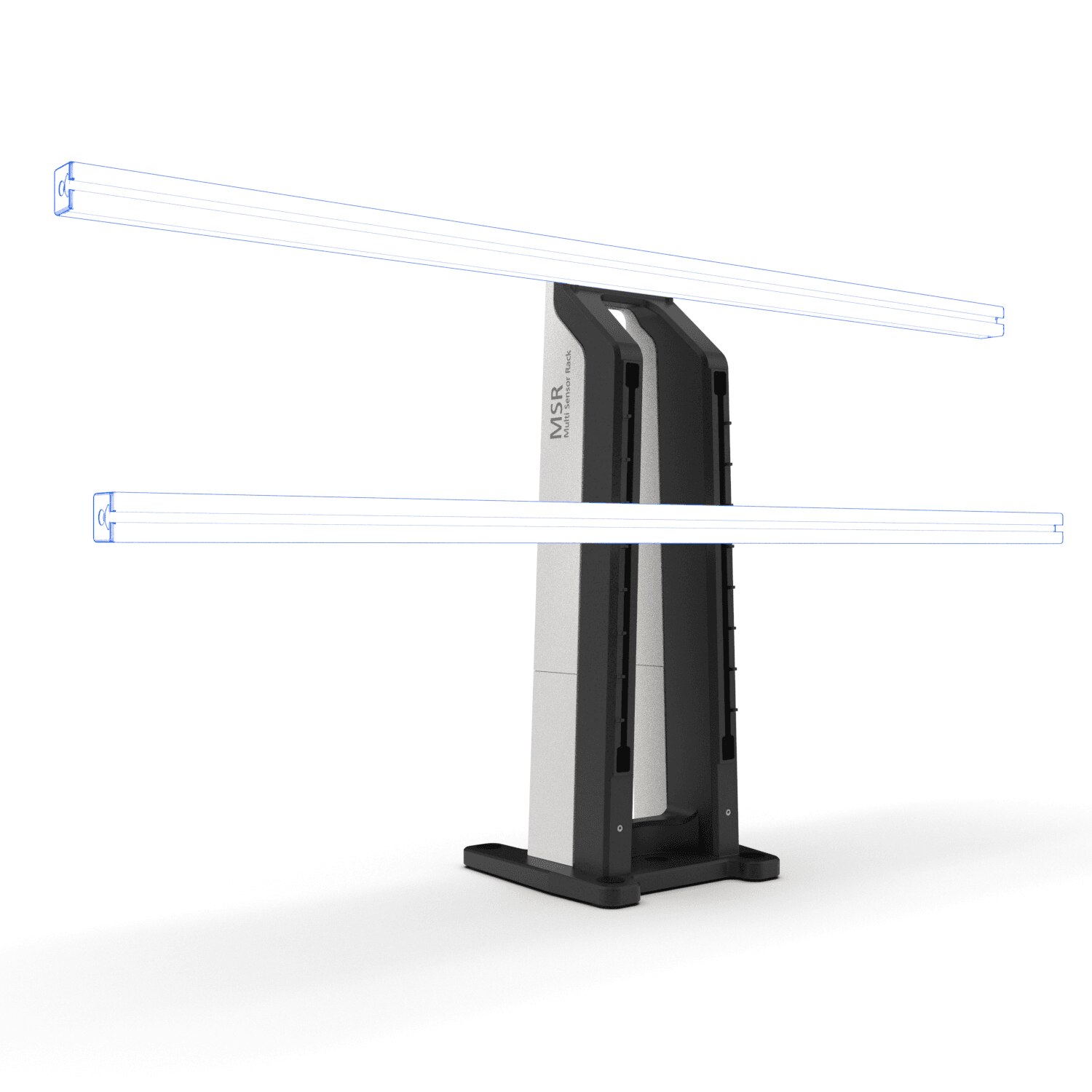

- - allows the installation of up to 3 storage bars of measuring range X <gt/>= 500 mm to <gt/>= 1200 mm
- - upper storage bar is mounted at a fixed height, lower storage bar may be mounted at different heights in stages
- - 3rd storage bar may also be mounted at different heights and requires a storage bar Adapter (extension).
Product note
Storage bars are sold separately (626100-9300-001, 626100-9300-002, 626100-9300-003, 626100-9300-004, 626100-9300-005) 3rd level will require a storage bar Adapter, sold seperately (626100-9300-005) Probe sockets used to store stylus systems and sensors are sold separately.
Multi Sensor Racks (MSR) are used to store stylus systems and sensors on the coordinate measuring machine. MSR allows expansions for multiple levels- precisely fitting and versatile. Probe sockets are added and their locations are integrated into the machine software so that the stylus system change is carried out automatically. All ZEISS configurations are supported by suitable probe sockets unique to the sensor type. The MSR 2.0 consists of the 3 main components 1 - MSR column in various heights, 2 - Storage bars in various widths (for mounting on the MSR column), 3 - Probe sockets that hold various stylus systems.
Enables automated stylus system changes
Maximum possible configuration of styus systems
Sturdy design with central column
Design to match the machine
Expandable to max. 3 levels
