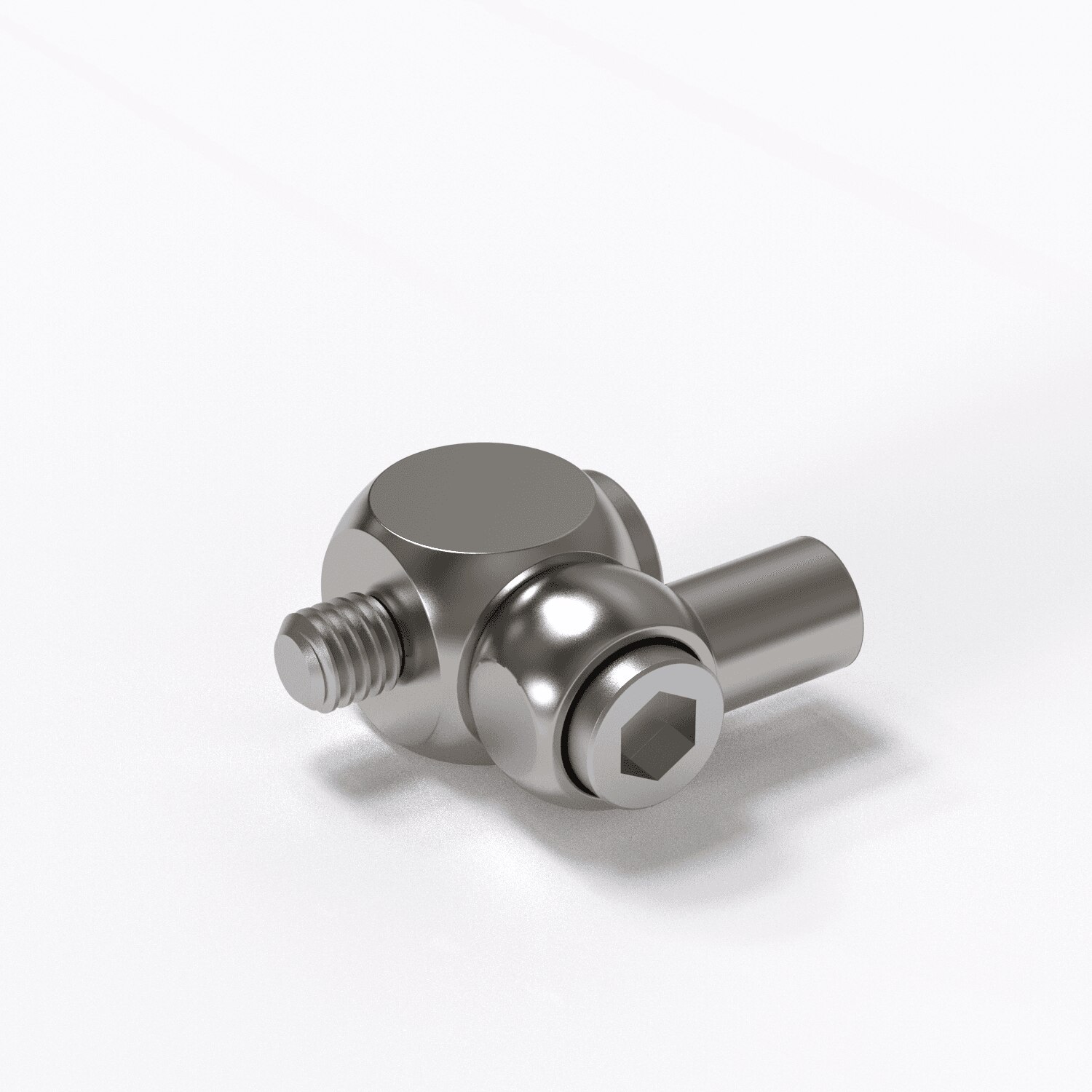

Offset rotating knuckle joint, M3
602030-9102-000
EUR 52.00
excluding VAT
In stock
Do you have questions?
System Integration
Connection Type
M3
Connection Type Out
M3

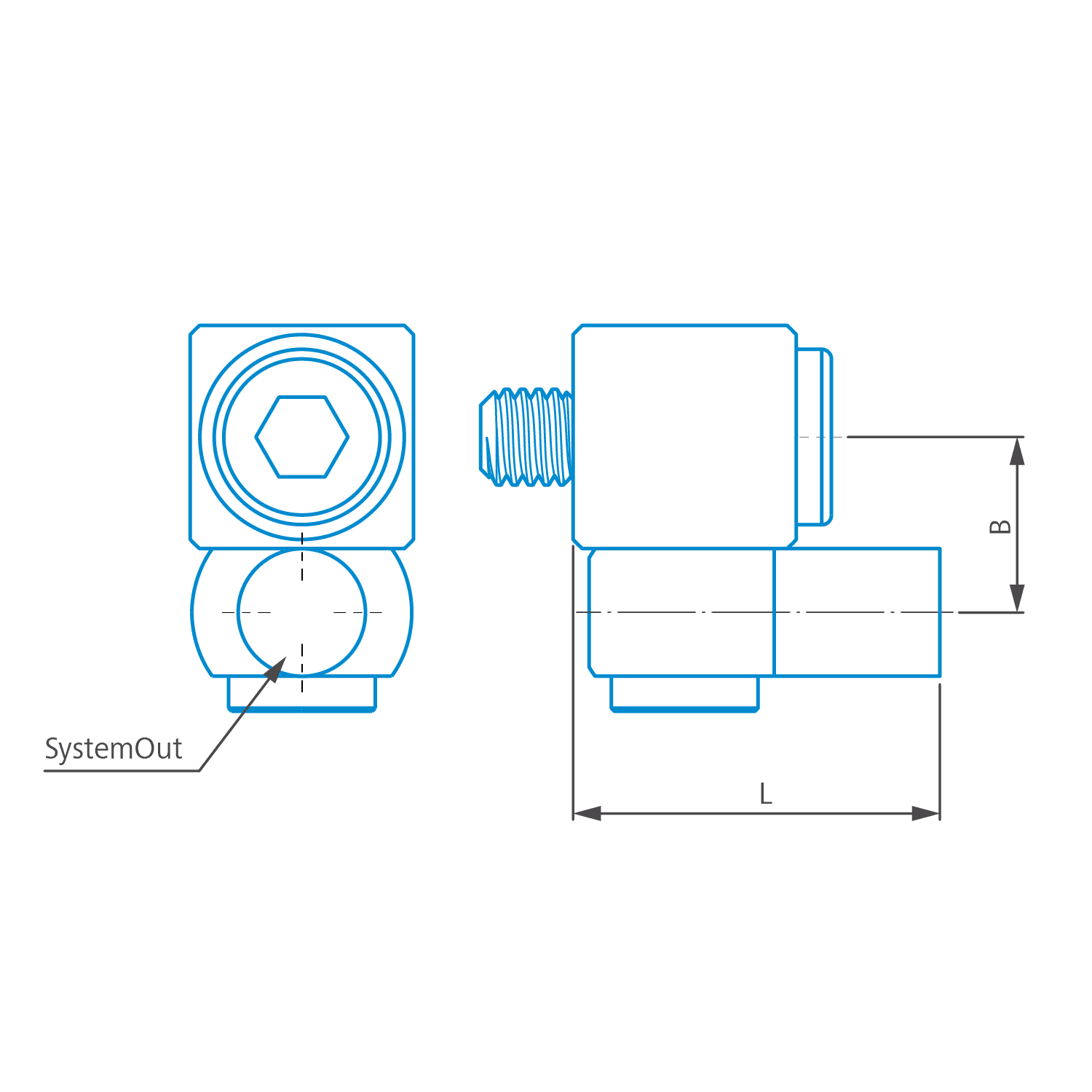

Primary Dimensions
Length (L)
12 mm
Width (B)
6 mm
Detailed Specifications
Material
Steel
Weight
3 g
Product note
It is not recommended to use M3 REN elements (with a diameter of 4 mm for touch trigger probes) without a suitable adapter on ZEISS XXT systems (with a diameter of 5 mm). The smaller diameter can lead to a loose connection, which can result in measurement errors.
Freely adjustable joint angle, angle freely adjustable (0°-90°), M3 REN system with outer diameter 4 mm
Flexibly adjustable angle
Quick and safe to set up
Optimum accessibility thanks to slim design
