Cube, M2
602030-8381-000
EUR 40.00
excluding VAT
In stock
Do you have questions?
System Integration
Connection Type
M2
Connection Type Out
M2

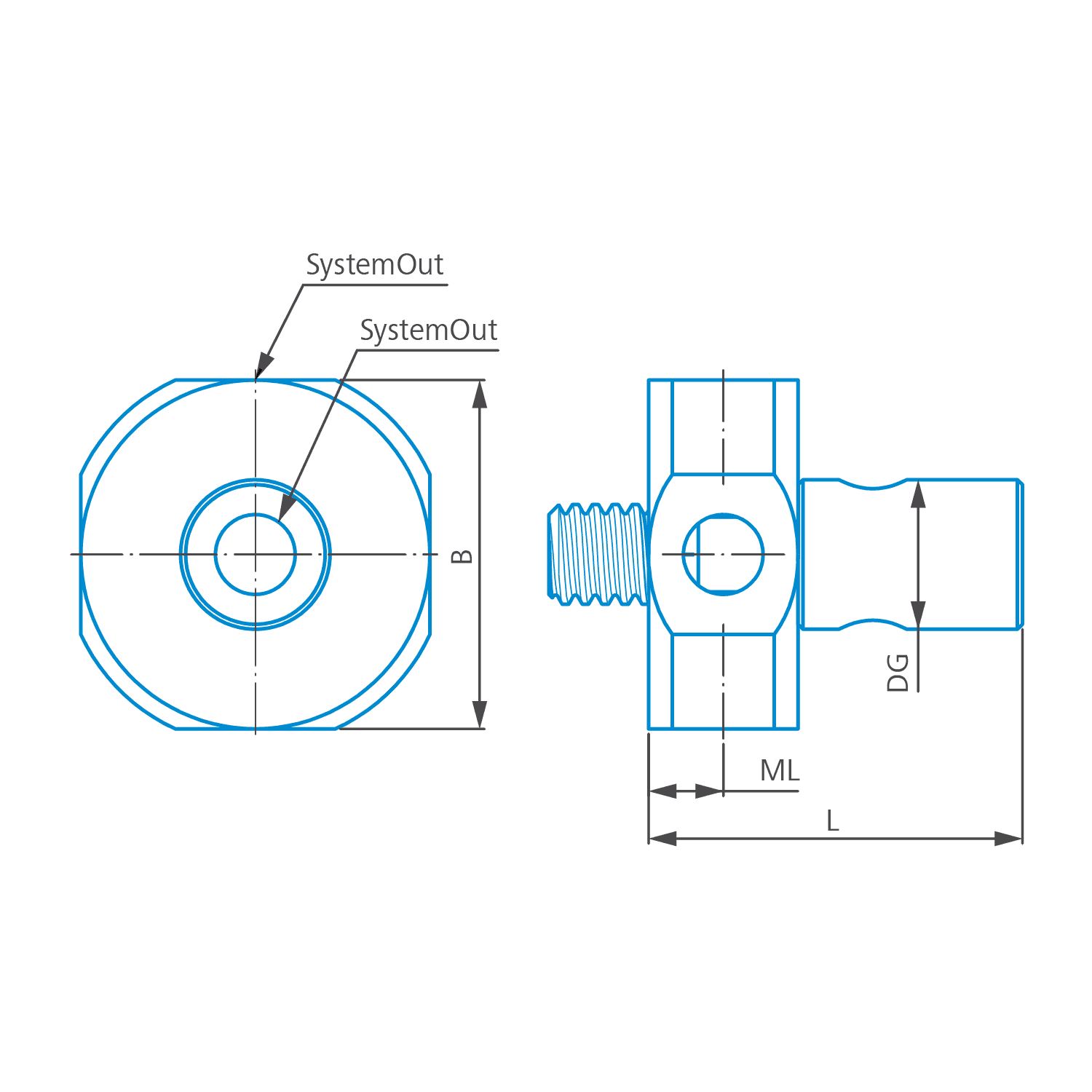

Primary Dimensions
Width (B)
8 mm
Length (L)
7 mm
Ø Body (DG)
3 mm
Detailed Specifications
Material
Steel
Weight
1 g
Number positions
5
Product note
The use of M3 REN extensions are not recommended on ZEISS scanning sensors such as VAST, VAST Gold or VAST XXT. Due to the smaller base diameter and the resulting reduced rigidity compared to the M5 or M3 XXT extensions, the reproducibility is poorer. However, adapters to other systems are also available for special applications in the fasteners section.

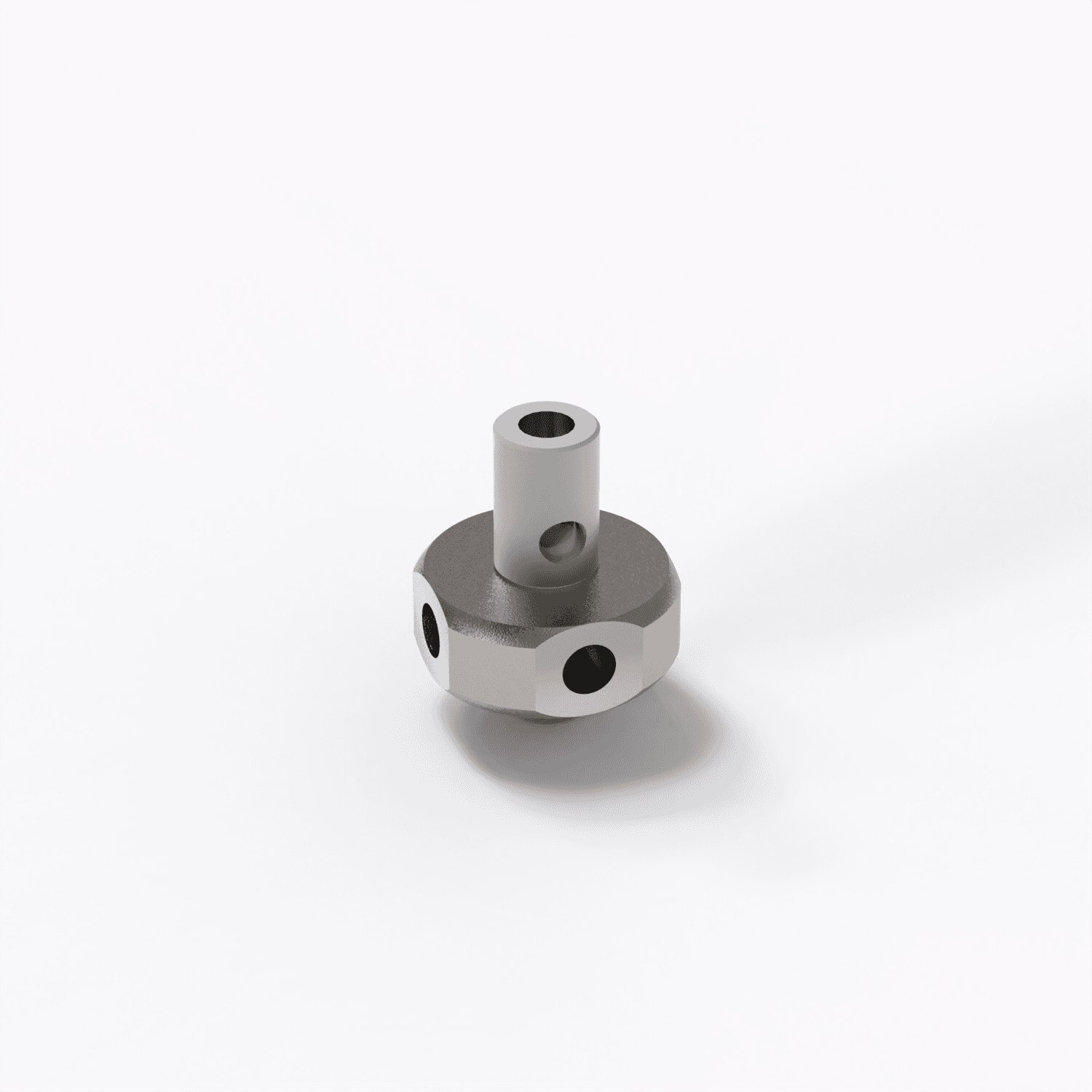

Cube with 4 M2 connections at a 90° angle and a further connection at the front, suitable for M2 elements with an outer diameter of 3 mm
Made from a high-quality titanium alloy
For the creation of star styli
