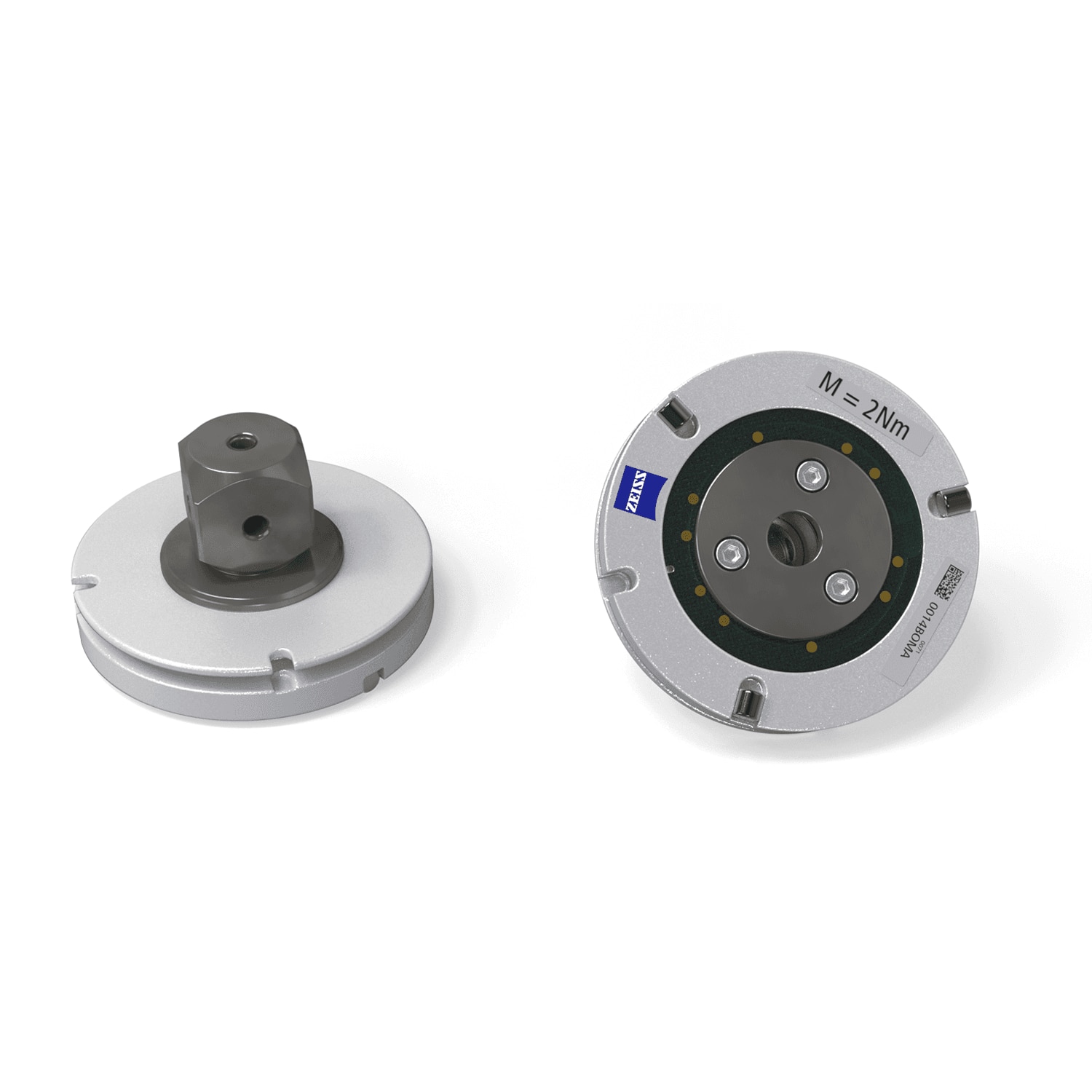

Adapter plate VAST (XT) gold, cube-5x-M5
600667-9612-000
EUR 330.00
excluding VAT
In stock
Do you have questions?
System Integration
Connection Type
M5
Connection Type Out
M5
Measuring sensor
VAST/MT
Primary Dimensions
Width (B)
22 mm
Measurement length (ML)
26,5 mm
Detailed Specifications
Number positions
5
Weight
158 g
2nd Measurement length (MLE)
14,5 mm
Product note
The benefits of ZEISS measuring machines and the guaranteed machine specifications are only valid when using genuine ZEISS adaptor plates. VAST Performance can only be used with ZEISS adaptor plates. When using aftermarket adaptor plates the negative influence on accuracy and stability is not insignificant. When adding new adaptor plates in CALYPSO, if you receive “Cmm error 479…” this can be corrected by downloading and running the latest DeviceActivator from https://portal.zeiss.com/download-center/softwares/imt
The adapter plate provides an interchangeable interface between the sensor and a stylus system. Integrated cubes with M5 threads or M5 pro are used to add ZEISS CFX extensions, connection elements and styli to suite any measurement application. The adapter plate then allows a manual or automatic stylus systems change when using a Multi Sensor Rack (MSR). Only ZEISS OEM adapter plates support the full functionality of software, accuracy and machine optimization.
ID chip label 100% identification of the correct probe system in the firmware/software to avoid collisions and incorrect measurements.
Safe handling of the stylus system (no incorrect pick-up possible in the MSR)
Full support of VAST Performance FlyScan and QuickChange functions.
More information on the control panel display (name, coordinates, measuring force, angle)
