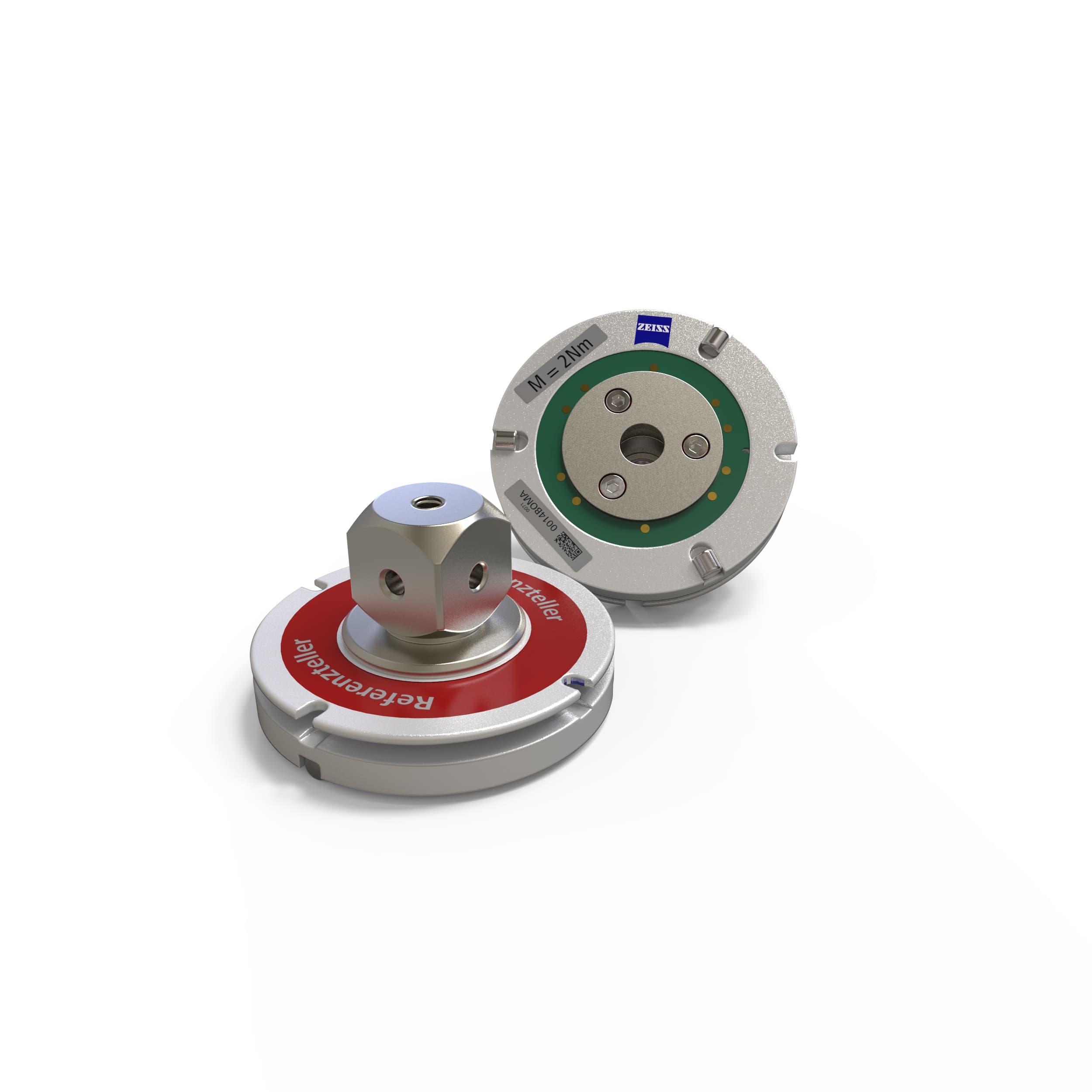

Reference adapter plate VAST (XT) gold, cube-5x-M5
600667-9602-000
EUR 330.00
excluding VAT
In stock
Do you have questions?
System Integration
Connection Type
M5
Connection Type Out
M5
Measuring sensor
VAST/MT
Primary Dimensions
Width (B)
22 mm
Measurement length (ML)
26,5 mm
Detailed Specifications
Number positions
5
Weight
158 g
2nd Measurement length (MLE)
14,5 mm
Product note
The benefits of ZEISS measuring machines and the guaranteed machine specifications are only valid when using genuine ZEISS adaptor plates. VAST Performance can only be used with ZEISS adaptor plates. When using aftermarket adaptor plates the negative influence on accuracy and stability is not insignificant. When adding new adaptor plates in CALYPSO, if you receive “Cmm error 479…” this can be corrected by downloading and running the latest DeviceActivator from https://portal.zeiss.com/download-center/softwares/imt
The Reference adapter plate provides an interchangeable interface between the sensor and a Reference stylus system. The plate is marked in red to clearly identify this plate.
ID chip label 100% identification of the correct probe system in the firmware/software to avoid collisions and incorrect measurements.
Safe handling of the stylus system (no incorrect pick-up possible in the MSR)
More information on the control panel display (name, coordinates, measuring force, angle)
