Star element, 5 x DS 1.5
600341-8368-000
EUR 47.00
excluding VAT
In stock
Do you have questions?
System Integration
Connection Type
M5
Connection Type Out
Without thread

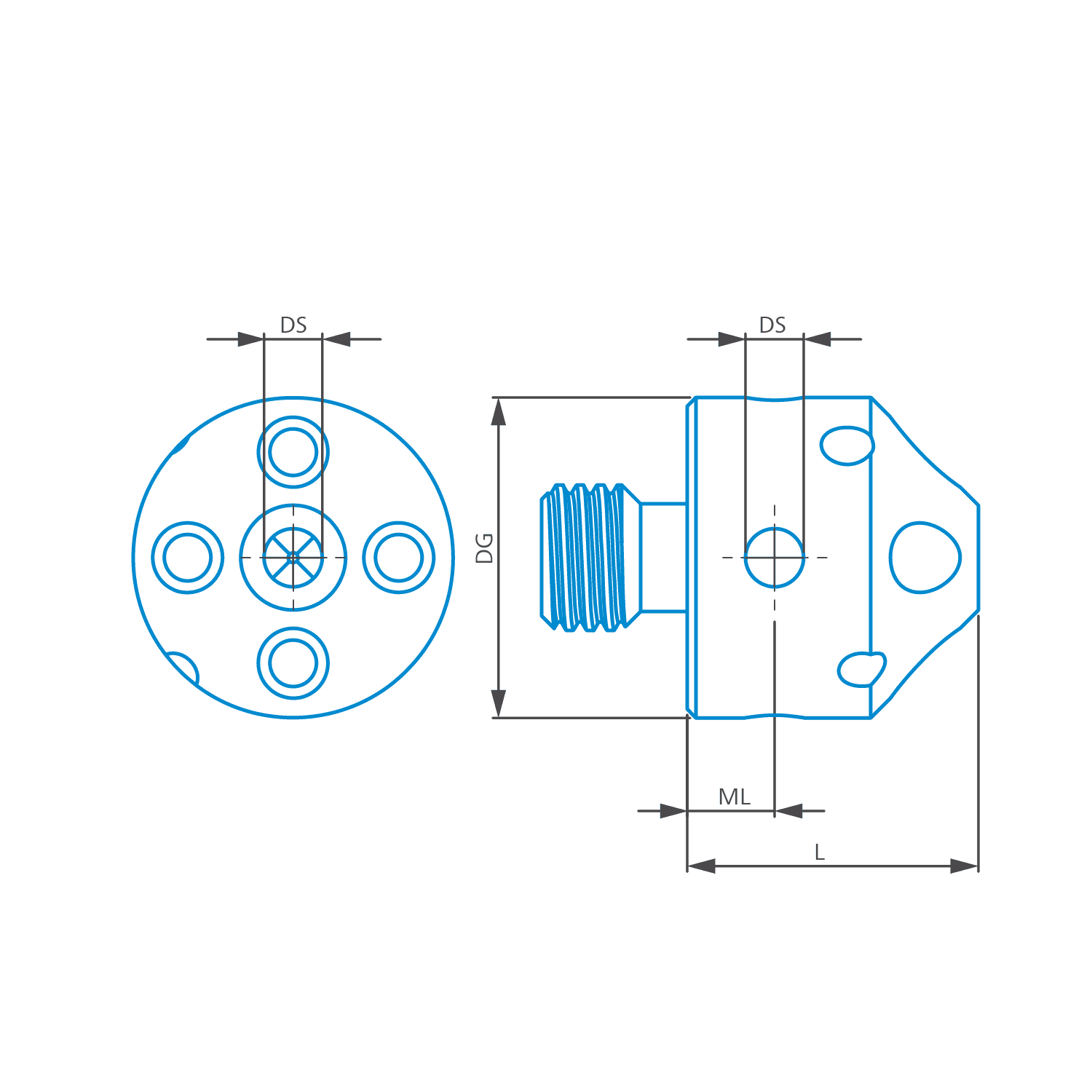

Primary Dimensions
Length (L)
10 mm
Ø Body (DG)
11 mm
Detailed Specifications
Material
Steel
Weight
5 g
Number positions
5
Product note
Multiple holders for styli with or without thread are used to create complex probe arrangements or star styli from standard elements. The advantage is the comparatively low cost compared to special probes and the flexibility when making changes to the measuring task.

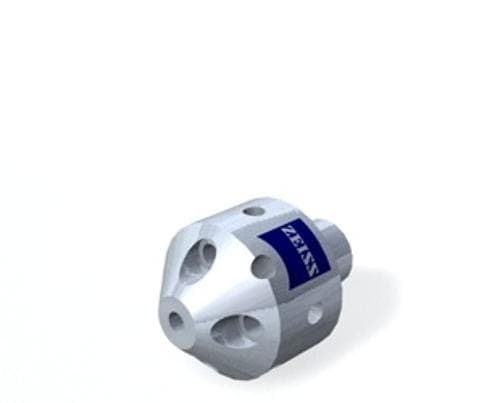

Stylus holder M5 for styli without thread, arrangement 4 x 90° plus 1 x at the front, clamping from the front
Can be used for 4 styli without thread
Additional threaded connection at the front
Good accessibility of the clamping screws from the front
Can be reused several times
Standard element for simple star styli
