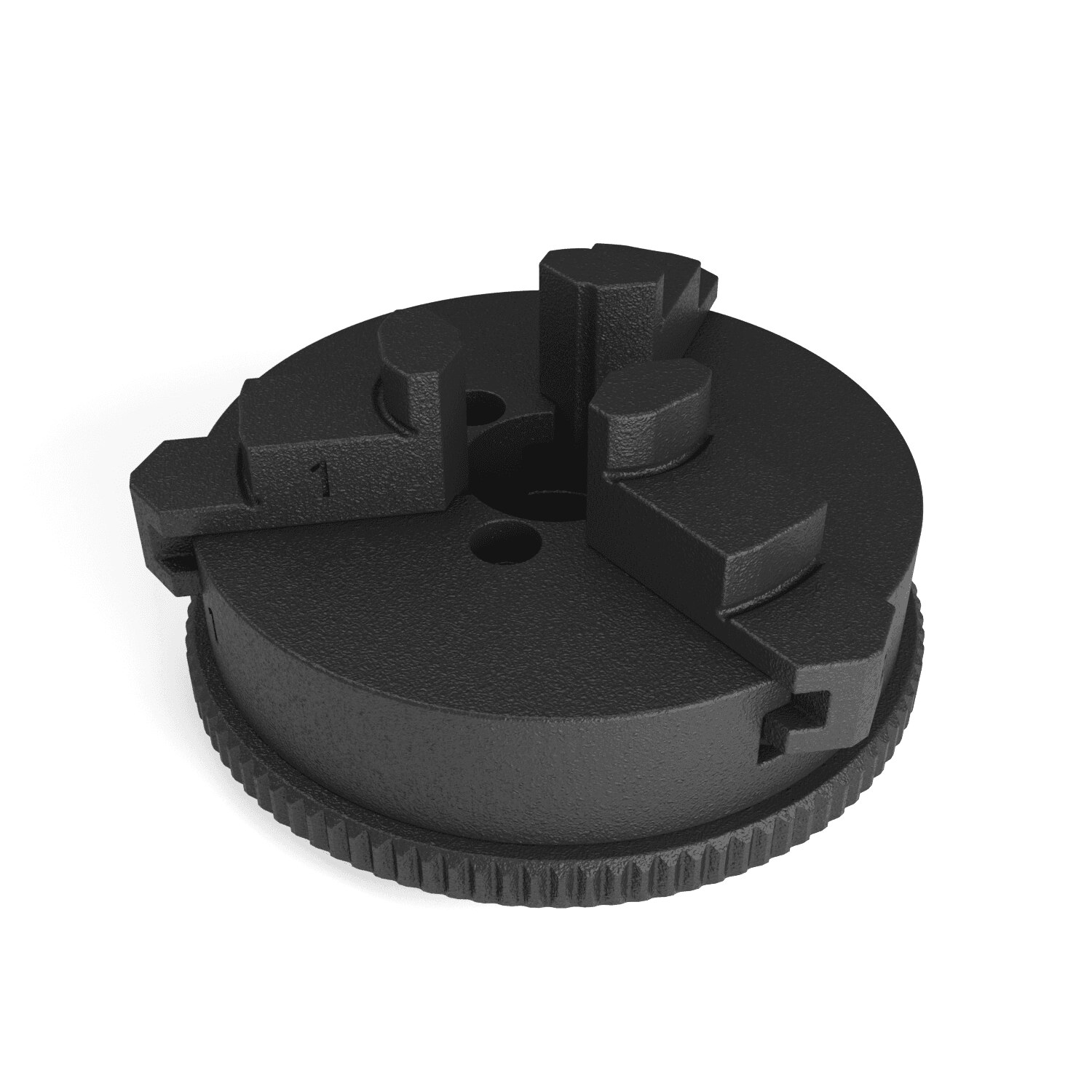

OmniFix CT plastic scroll chuck Ø70
626170-0011-160
3.367,00 DKK
excluding VAT
In stock
Do you have questions?
Overall
Machine
METROTOM 1, METROTOM 6 scout, METROTOM 800, METROTOM 1500, VoluMax 9 titan
Details
Plastic jaw chuck with reversible jaws for internal and external clamping
- - Outside diameter 70 mm
- - Internal clamping (12.5 - 70 mm)
- - External clamping (1 - 80 mm)
- - Center bore 18 mm
- Scope of delivery:
- - 1 x plastic jaw with 3 reversing jaws
- - Set of fixing screws M4

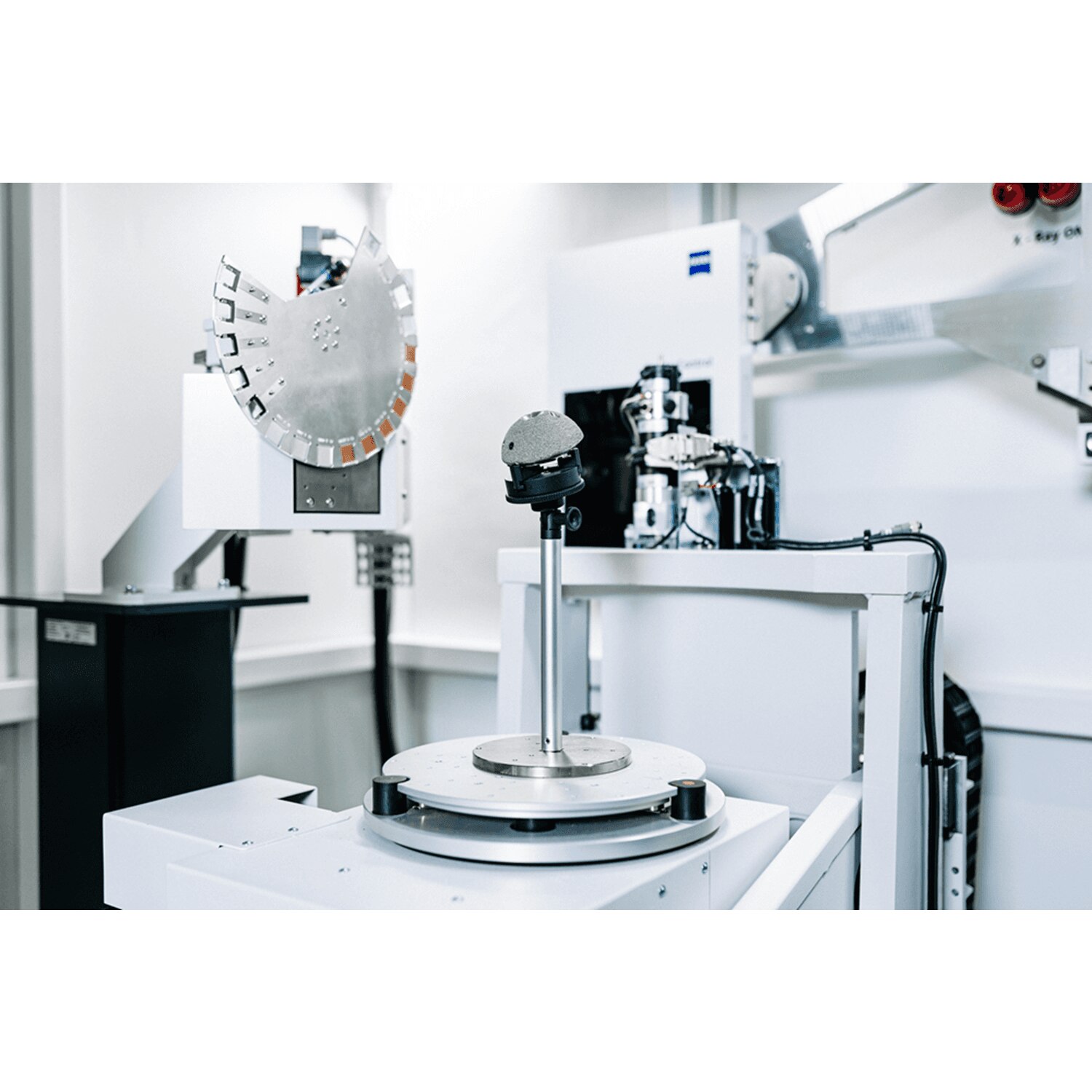

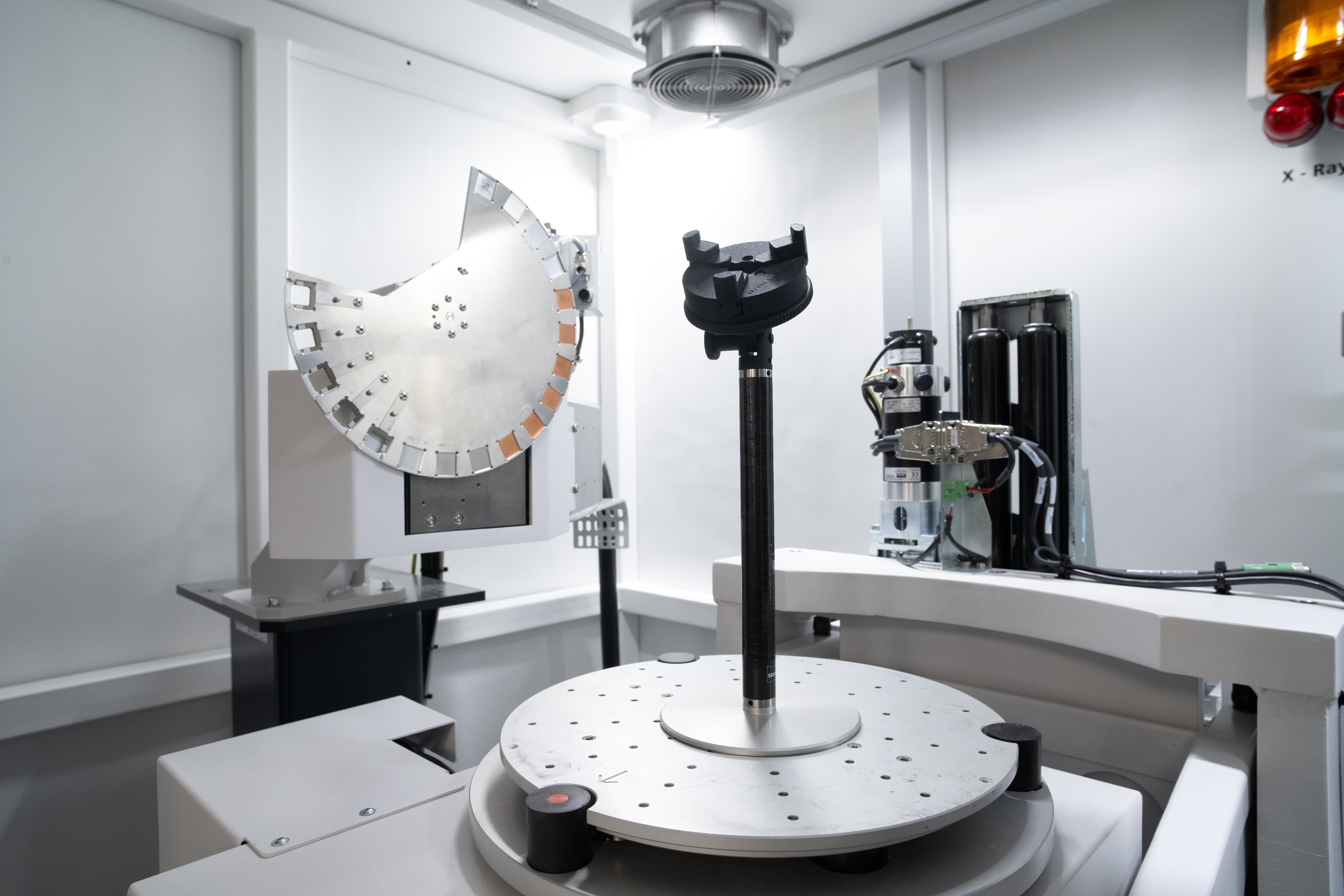

OmniFix CT Plastic Scroll Chuck is ideal for quick and easy holding of cylindrical parts. This Ø70 mm 3-jaw plastic scroll chuck is made with low density plastic material. The absence of any metal in the scroll chuck minimizes CT scanning interference with plastic or metal workpieces. The OmniFix CT Plastic Ring Chuck can be combined with the Plastic Articulating Joint 626170-0011-155 (not included), to tilt the chuck to a certain angle.
Low Density Plastic
Optimal contrast when scanning through metal parts
No damage to sensitive components
No tools required
