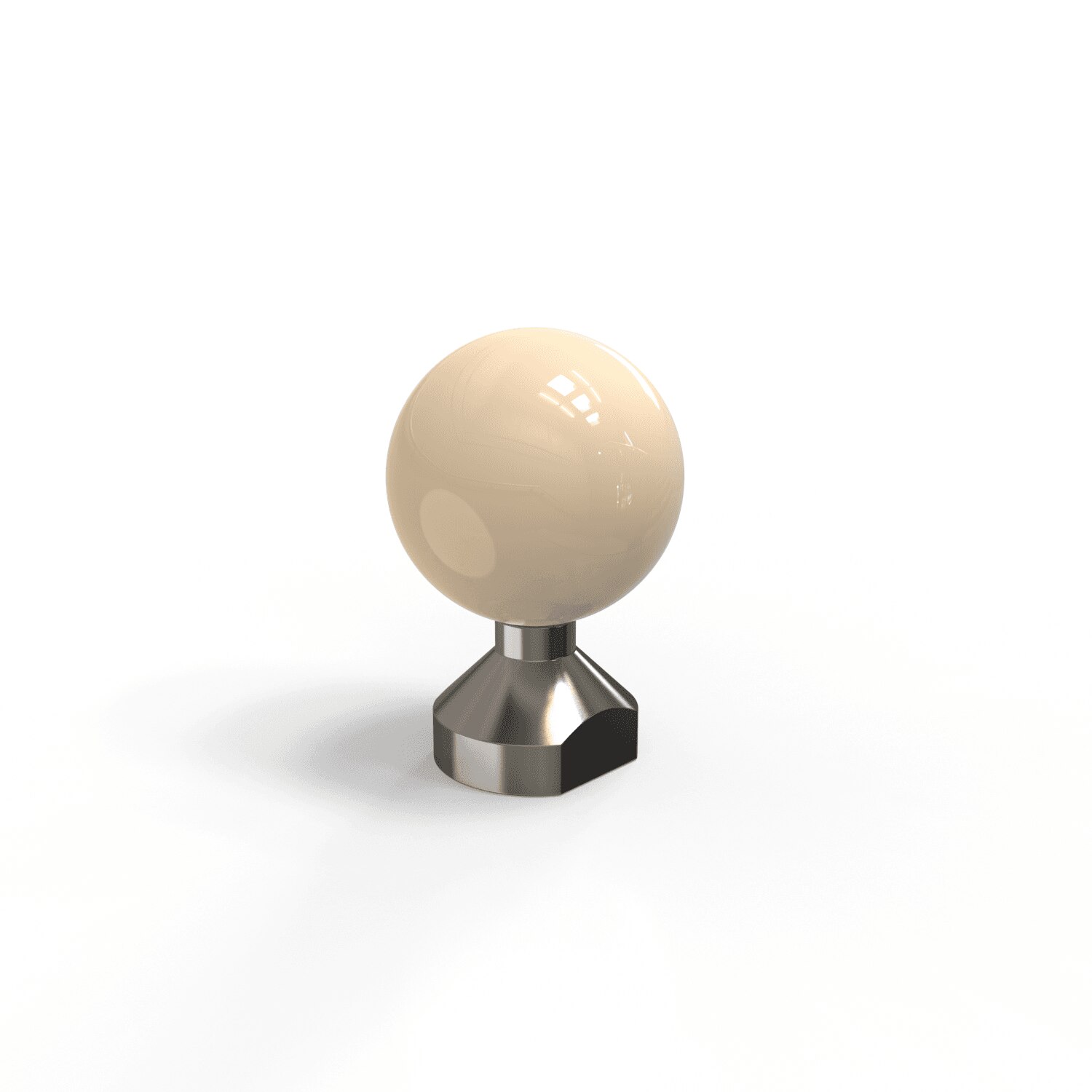

Reference sphere, M8, DK25, L38, Ceramic
626118-2500-038
3.154,00 DKK
excluding VAT
In stock
Do you have questions?
Details
- Sphere diameter: 8 mm
- - Connection: M8
- - Material of sphere: Ceramic
- - Length: 38 mm
- - Base diameter: 24 mm
- - Sphere diameter tolerance: ≤1 μm
- - Sphericity: ≤0.5 μm
- - Surface roughness: ≤0.03 μm
- - Surface porosity: ≤ 20 μm
- ZEISS calibration certificate included
Reference sphere for use with tactile measuring heads.
Validated spheres specific to CMMs
Ceramic spheres provide optimal thermal stability and surface quality
Compatible with ZEISS reference sphere holders
ZEISS calibration certificate included
