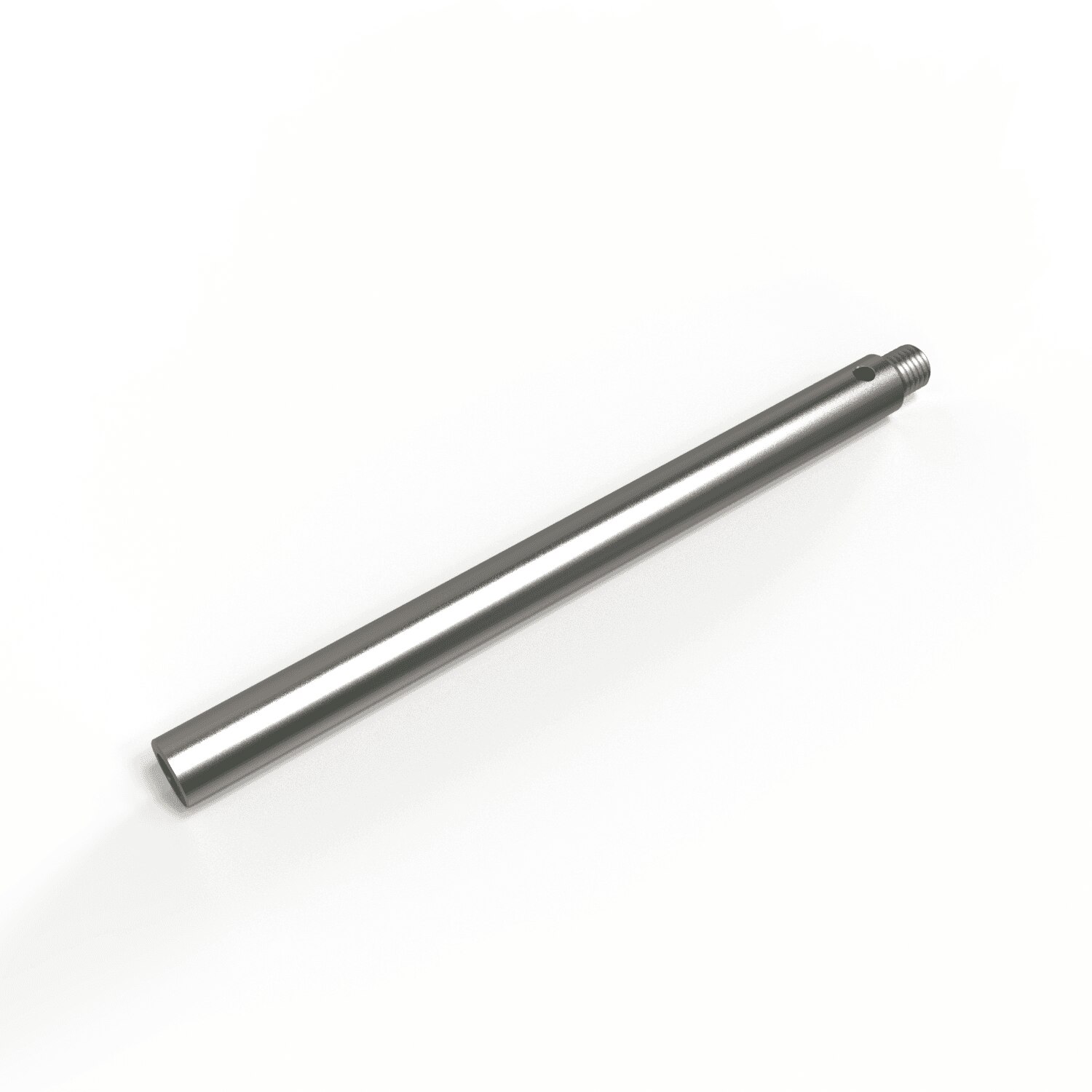

Extension M3-DG4-L60-1x-M3
626117-4060-201
163,00 DKK
excluding VAT
In stock
Do you have questions?
System Integration
Extension type
Stylus Extension
Connection Type
M3
Connection Type Out
M3
Primary Dimensions
Length (L)
60 mm
Ø Body (DG)
4 mm
Detailed Specifications
Material
Steel
Weight
5,5 g
Product note
M3 extensions are suitable for ZEISS RST and other M3 sensors from Renishaw or Hexagon. Due to the Ø4 mm shoulder, they should not be freely mixed with Ø5 mm M3 XXT styli and extensions. The smaller diameter can lead to a loose connection and measurement errors.
M3 extensions with a 4 mm diameter have been specially developed for use with M3 sensors. These extension are not recommended for the ZEISS VAST M3 XXT sensor.
M3 system with 4 mm diameter for M3 sensors
Made of robust, rigid stainless steel solid material
