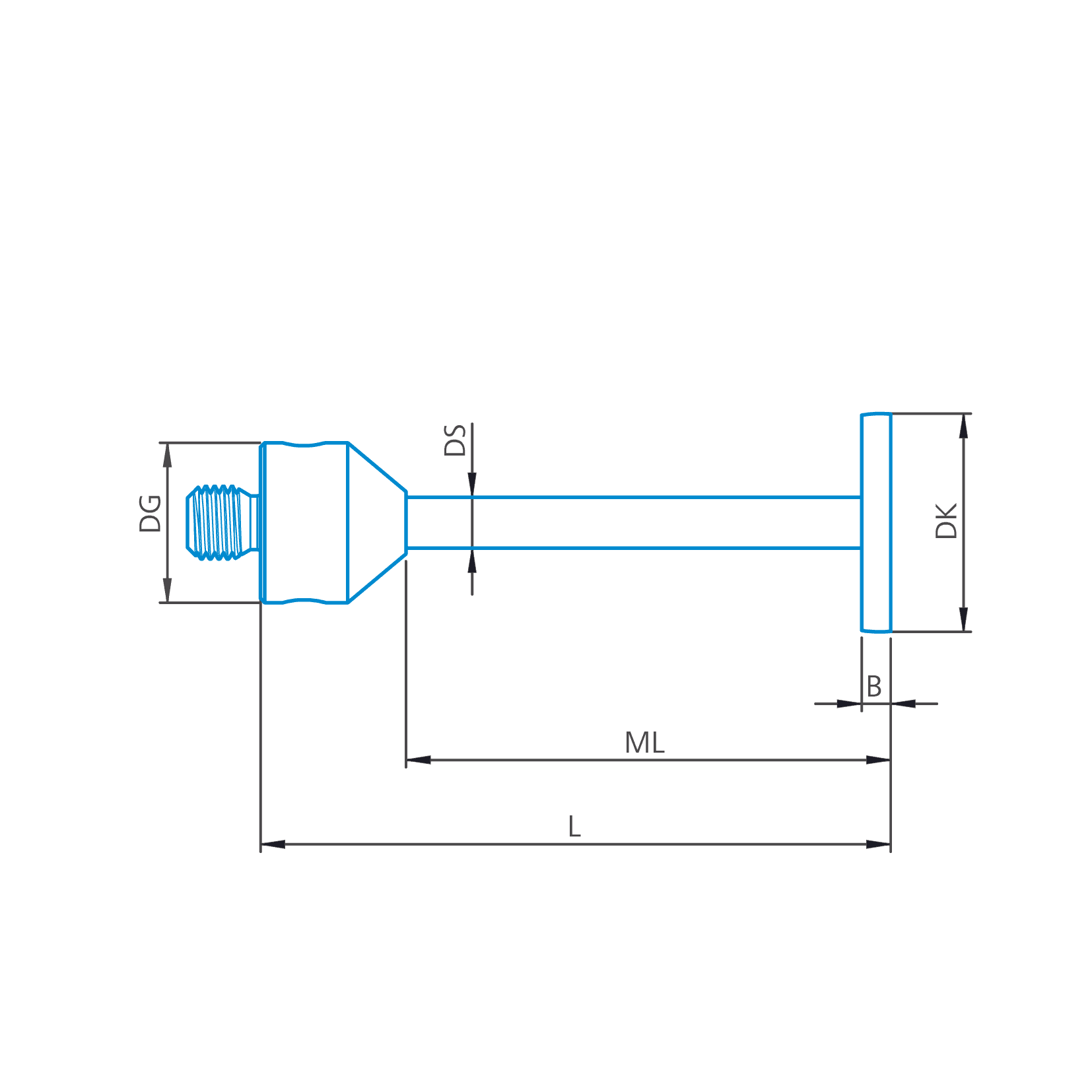

Disk stylus M5, DK25 L95
626115-5000-822
2.730,00 DKK
excluding VAT
Made to order
Do you have questions?
Stylus tip
Diameter sphere (DK)
25 mm
Tip material
Ceramic
Tip geometry
Disk
Stylus shaft
Measurement length (ML)
82 mm
Shaft material
Tung. Carb.
Ø Shaft (DS)
6 mm
Width (B)
1 mm
Overall
Length (L)
95 mm
Ø Body (DG)
11 mm
Weight
45 g
Stylus type
Disk Stylus
Connection Type
M5
Product note
Depending on the material of the stylus and the workpiece, wear or material deposits may occur. Therefore, regularly check your styli under a microscope and remember to clean them or replace them if damaged. Depending on the type and degree of contamination, a wide range of cleaning agents are available for cleaning. ZEISS application engineers recommend stylus cleaning wipes or microfiber cloths.
Disc styli to measure rotationally symmetrical workpieces with undercuts or recesses and cylinders. M5 thread for VAST active scanning sensors.
Discs for grooves, undercuts in boreholes and similar
Lightweight ceramic disc for more precision
Tungsten carbide shaft with high rigidity
Straight shaft with longer measuring length
Proven ZEISS quality through high-end manufacturing
