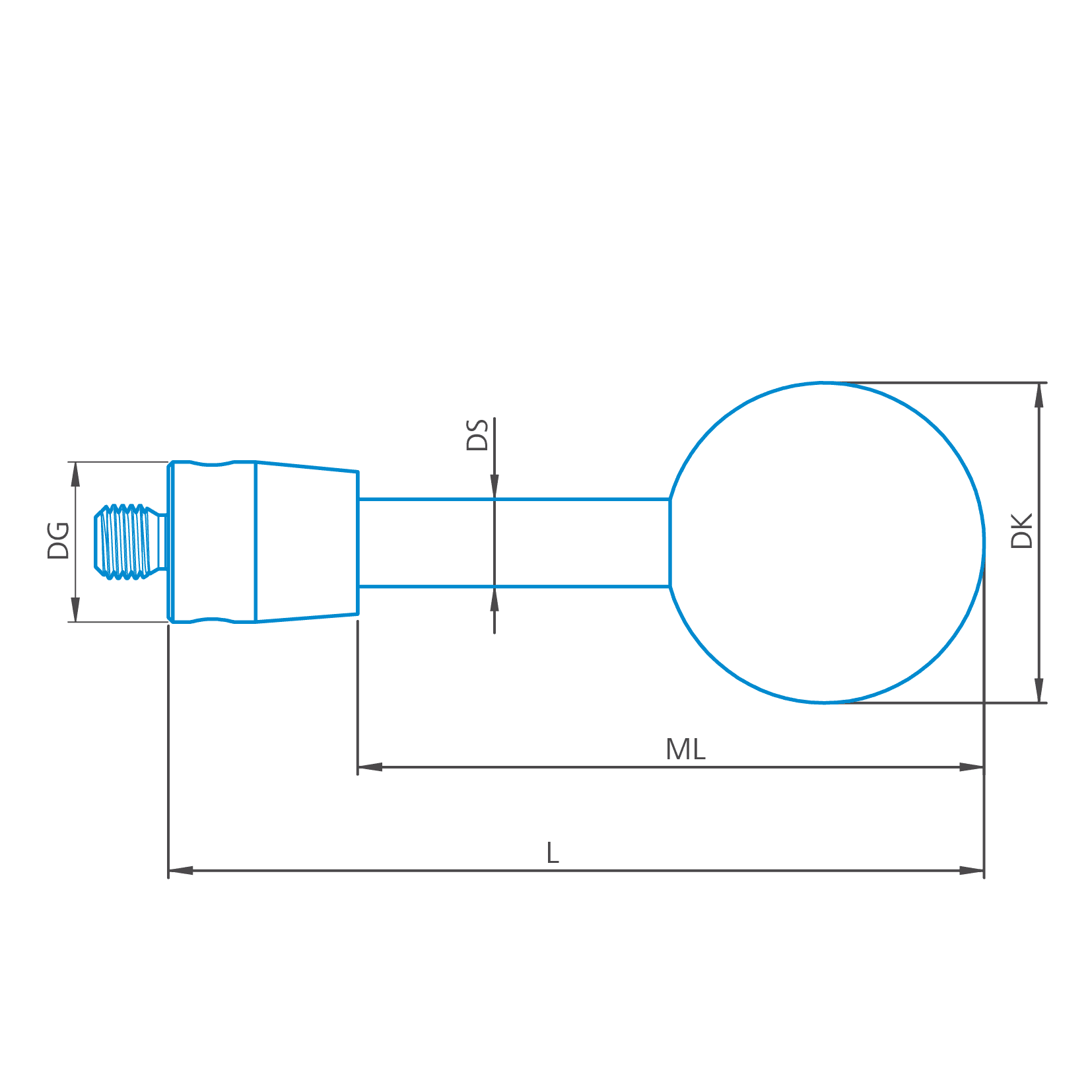

Stylus straight M5 precision, DK19.884 L83
626115-1982-083
3.899,00 DKK
excluding VAT
Made to order
Do you have questions?
Stylus tip
Diameter sphere (DK)
19,884 mm
Tip material
Ceramic
Tip geometry
Sphere
Stylus shaft
Measurement length (ML)
70 mm
Shaft material
Tung. Carb.
Ø Shaft (DS)
6 mm
Overall
Length (L)
83 mm
Ø Body (DG)
11 mm
Stylus type
Straight
Connection Type
M5
Product note
Depending on the material of the stylus and the workpiece, wear or material deposits may occur. Therefore, regularly check your styli under a microscope and remember to clean them or replace them if damaged. Depending on the type and degree of contamination, a wide range of cleaning agents are available for cleaning. ZEISS application engineers recommend stylus cleaning wipes or microfiber cloths.
High precision styli with tight diameter tolerances are used in special measuring tasks like self-centering scanning of gothic profiles. M5 thread for VAST active scanning sensors.
With blue marked adapter
Spherical styli have the same probing behavior in every direction
Lightweight ceramic sphere for high precision
Guaranteed diameter tolerance of ± 0.001 mm with certificate
Tungsten carbide shaft with high rigidity
Straight shaft with longer measuring length
Proven ZEISS quality through high-end manufacturing
