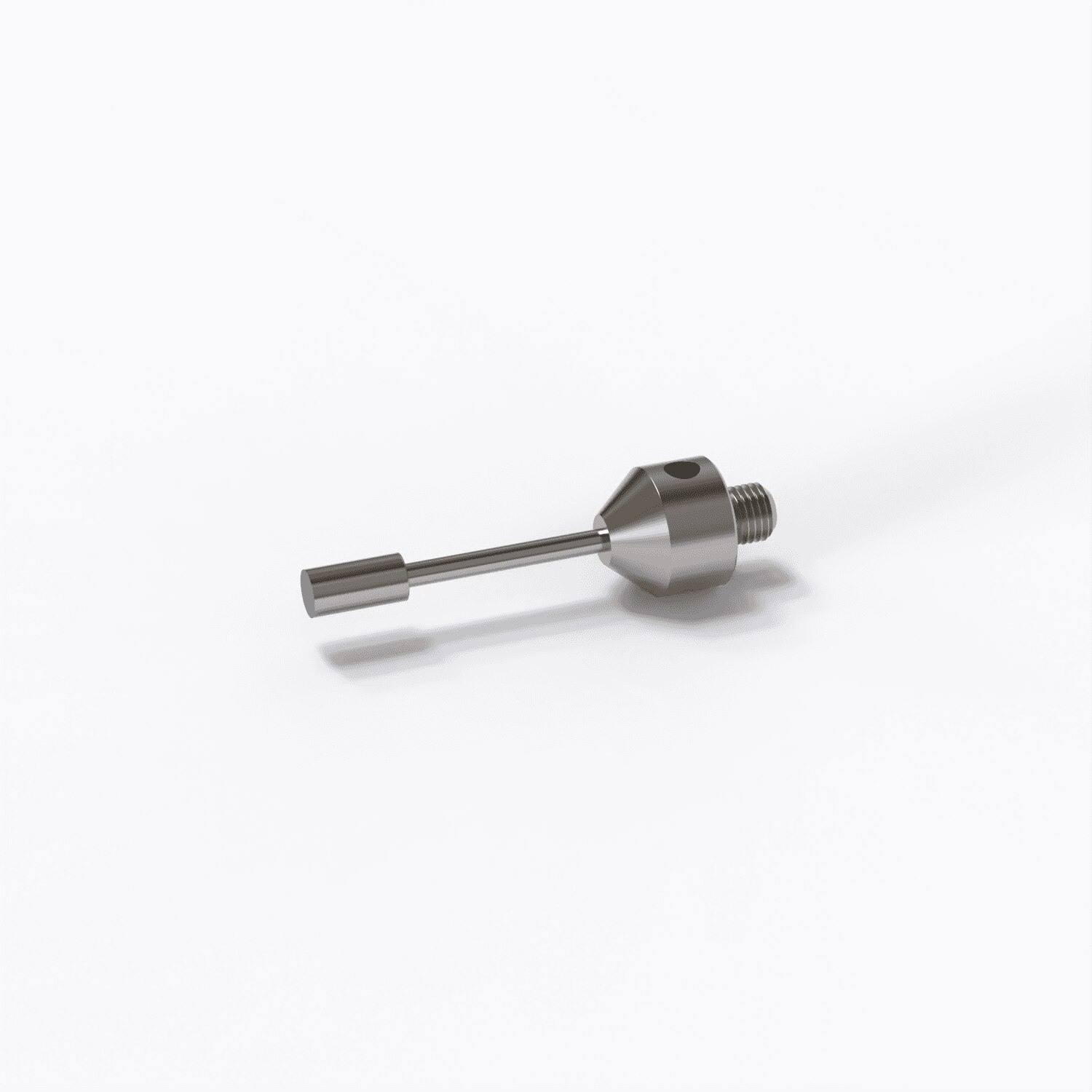

Cylinder stylus M5, DK2 L25
626115-0203-025
825,00 DKK
excluding VAT
Made to order
Do you have questions?

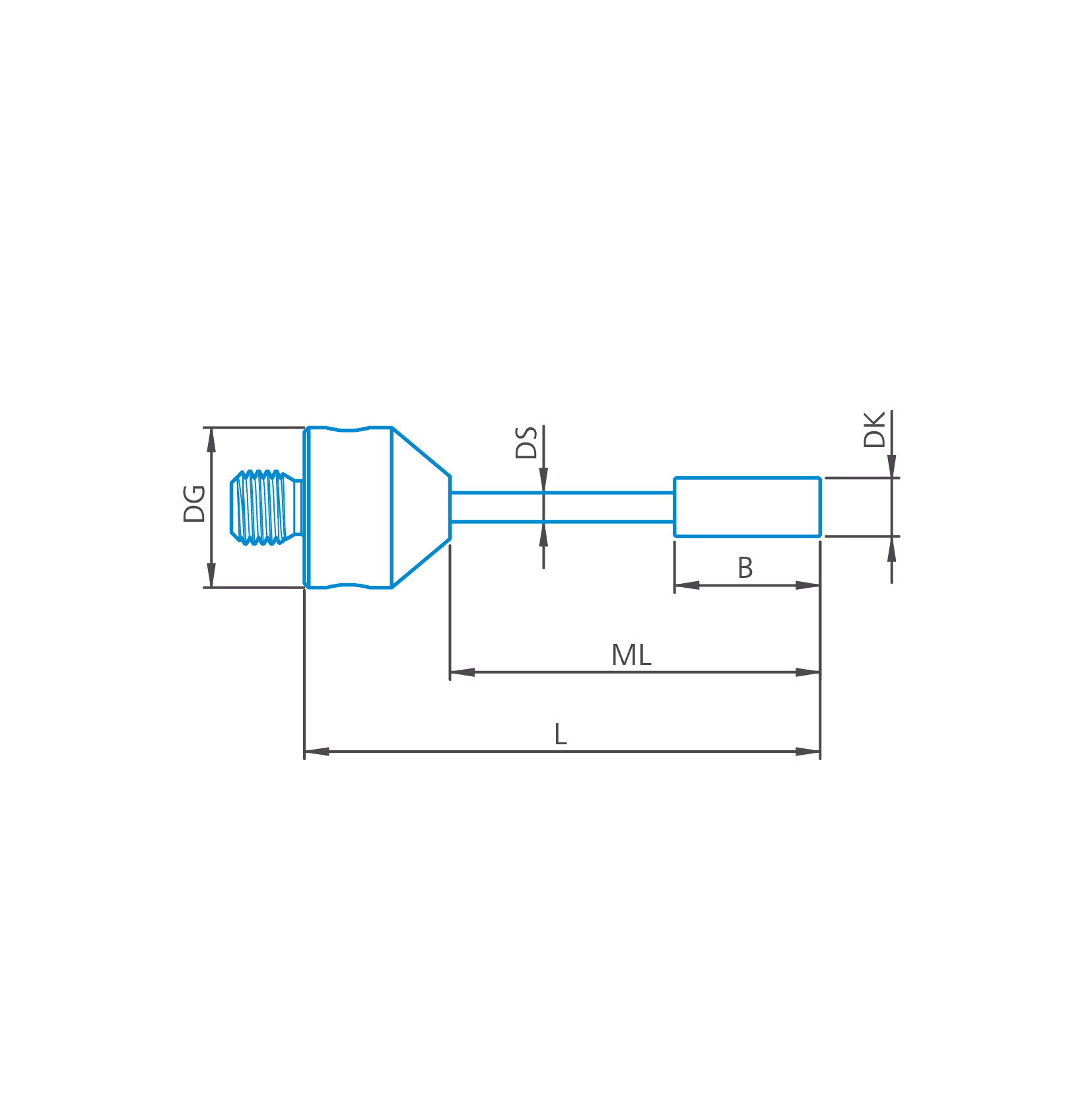

Stylus tip
Diameter sphere (DK)
2 mm
Tip material
Tung. Carb.
Tip geometry
Cylinder
Stylus shaft
Measurement length (ML)
15 mm
Shaft material
Tung. Carb.
Ø Shaft (DS)
1,5 mm
Width (B)
5 mm
Overall
Length (L)
25 mm
Ø Body (DG)
11 mm
Weight
5,8 g
Stylus type
Cylinder
Connection Type
M5
Product note
Depending on the material of the stylus and the workpiece, wear or material deposits may occur. Therefore, regularly check your styli under a microscope and remember to clean them or replace them if damaged. Depending on the type and degree of contamination, a wide range of cleaning agents are available for cleaning. ZEISS application engineers recommend stylus cleaning wipes or microfiber cloths.
Cylindrical styli for thin sheets and narrow workpiece edges. M5 thread for VAST active scanning sensors.
Cylindrical styli for two-dimensional measuring tasks
Tungsten carbide cylinder for special size and form
Tungsten carbide shaft with high rigidity
Stepped measuring cylinder
Proven ZEISS quality through high-end manufacturing
