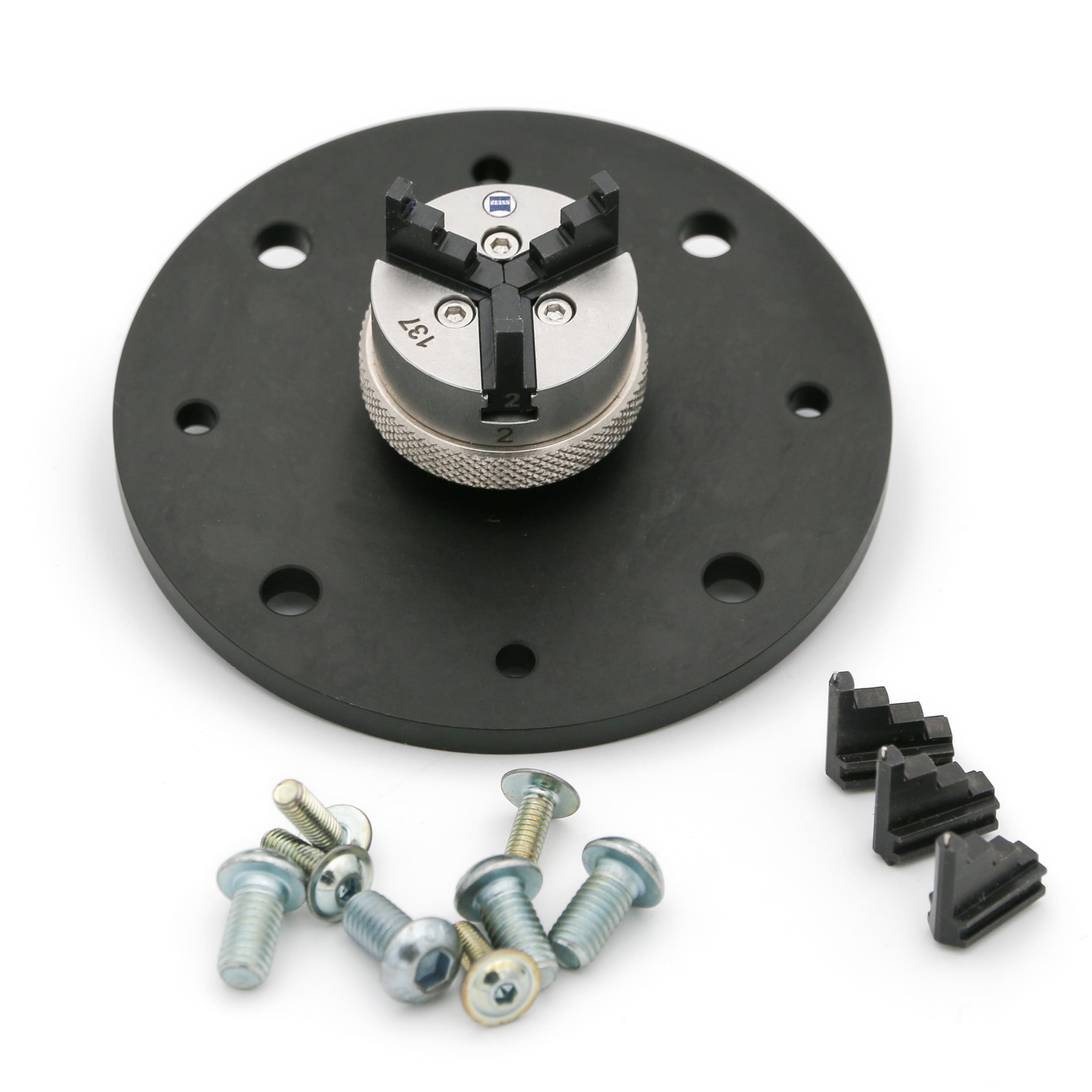

OmniFix three-jaw ring chuck mini with pins Ø30 mm
626109-9220-083
13.782,00 DKK
excluding VAT
In stock
Do you have questions?
Overall
Product type
3 Jaw Chuck
Application
Mount
Material
Steel
Details
- Body made of high-strength steel, corrosion protected, brass colored
- - Outer diameter Ø30 mm
- - Through hole Ø8H7 mm
- - Height base plate with body 28 mm
- - Reversible steel top jaws hardened/ground
- - Concentricity accuracy 0.03 mm
- - Weight (including base plate) approx. 0.38 kg
- - Clamping range: Internal clamping 6 – 34 mm, External clamping 0.6 – 34 mm
- - Adapter plate made of aluminium, anodized, black
- - Outer dimensions Ø90 mm
- - Mounting option with M4/M6 – 50 x 50 mm
- Scope of delivery:
- - 1 set = 3 hardened inner jaws stepped with clamping pins
- - 1 set = 3 hardened reversing jaws stepped
- - 1 fastening screws or bolts depending on the jaw chuck
Product note
ZEISS chucks are tested by our application engineers on ZEISS machines and guarantee the best possible measuring accuracy. The components to be measured are optimally fixed at all times so that a reliable sequence of the measuring programs is guaranteed. To maintain the function and quality of the chuck, it must be serviced at regular intervals. Chuck must be as free of fast and silicone as possible.
Three-jaw ring chucks are mainly used for clamping cylindrical or ring-shaped parts at low clamping forces. In contrast to chucks for the machining of workpieces, the clamping force must be significantly lower in metrology, otherwise there is a risk of deformation of the components. By clamping by hand with the clamping ring, the components can be clamped with exactly the required clamping force. With the additionally attached spring steel dowel pins, parts with inner diameters from 2 mm can be accommodated. The versions with base plate allow easy mounting on all ZEISS grid plates and pallets with M4/M6 threaded grid.
3-jaw mini ring chuck
With additional spring steel dowel pins for inner diameter from 2 mm
For smallest components
Optimal accessibility
With adapter plate for ZEISS grid plates and pallets
Stainless and precise
