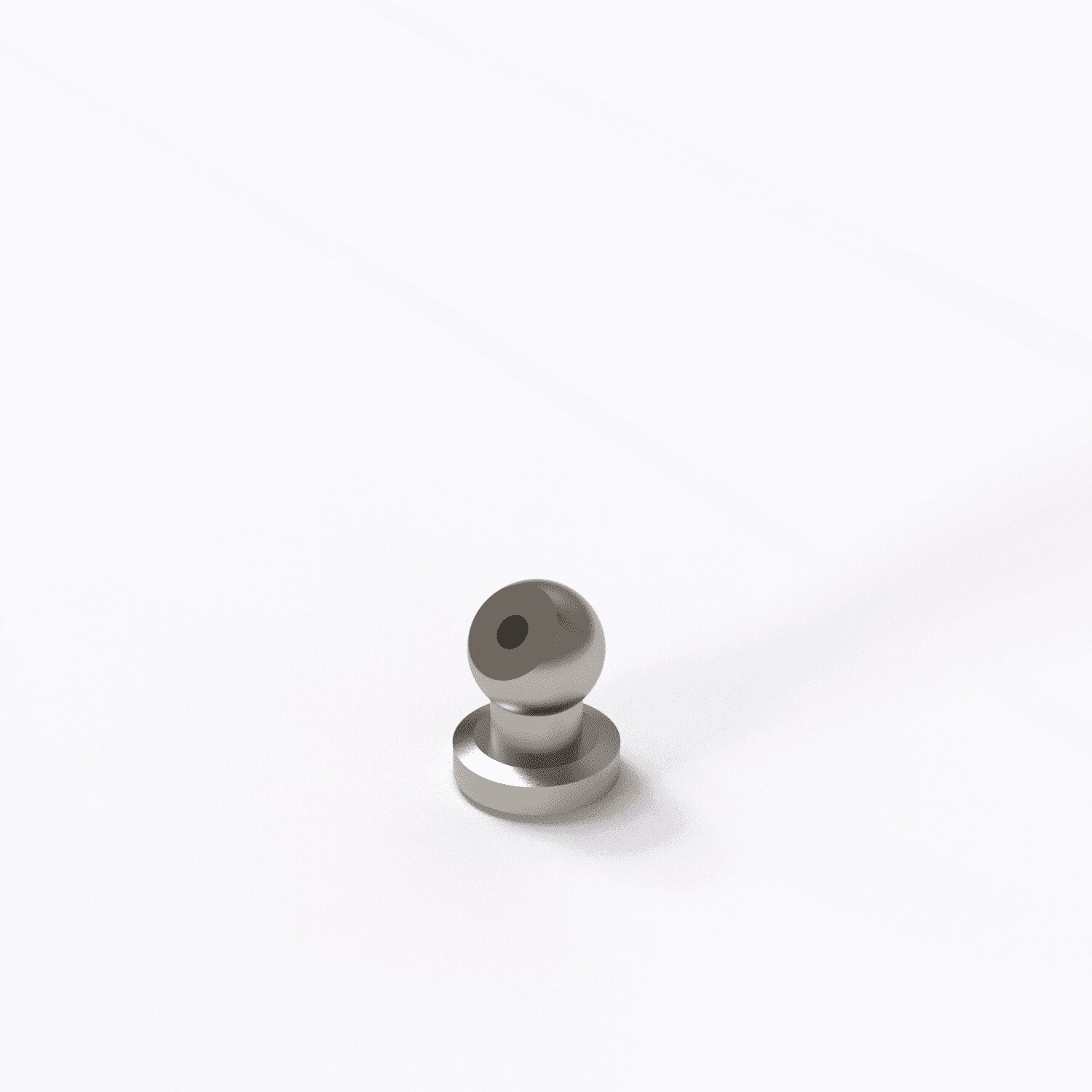

Angle block short, ThermoFit Pro system
626107-6021-212
983,00 DKK
excluding VAT
Expected soon
Do you have questions?
System Integration
Connection Type
M5 Pro
Connection Type Out
M5

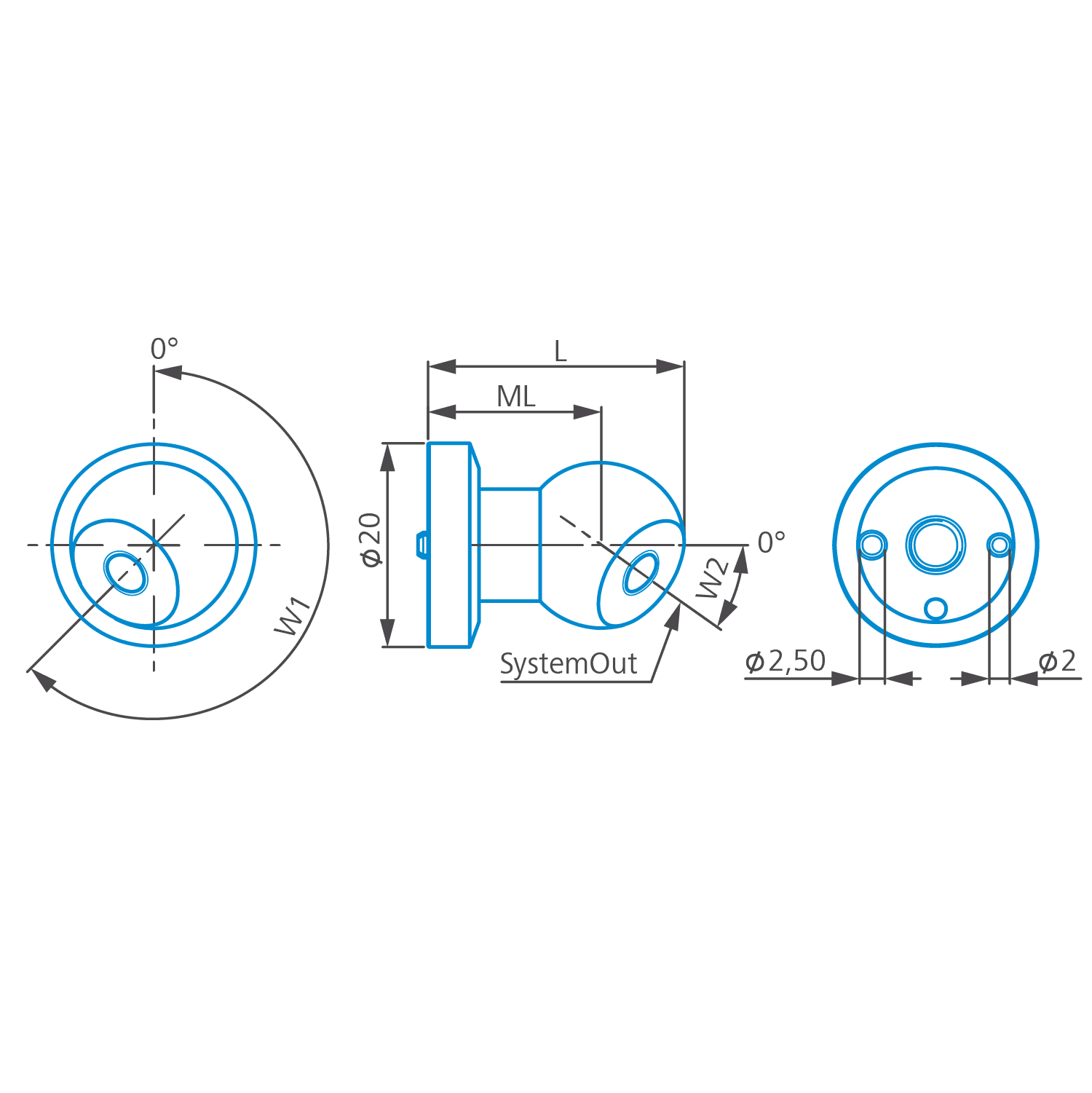

Primary Dimensions
Angle 1(W1)
0°
Angle 2(W2)
15°
Measurement length (ML)
17 mm
Detailed Specifications
Number positions
1
Weight
17 g
Length (L)
25 mm
Ø Body (DG)
20 mm
Product note
Angle elements with milled spatial angles replace complex adjustable angle pieces. The CNC accuracy makes it possible to achieve the required angle positions without a great deal of adjustment effort, thus enabling reliable production measurement
Titanium angle element with milled spatial angle W1 and W2. With M5 pro adaptation consisting of M5 thread and 2 index pins
CNC-machined solid angle
Fixed angle for reliable production measurement
Manufactured from a high-grade titanium alloy
