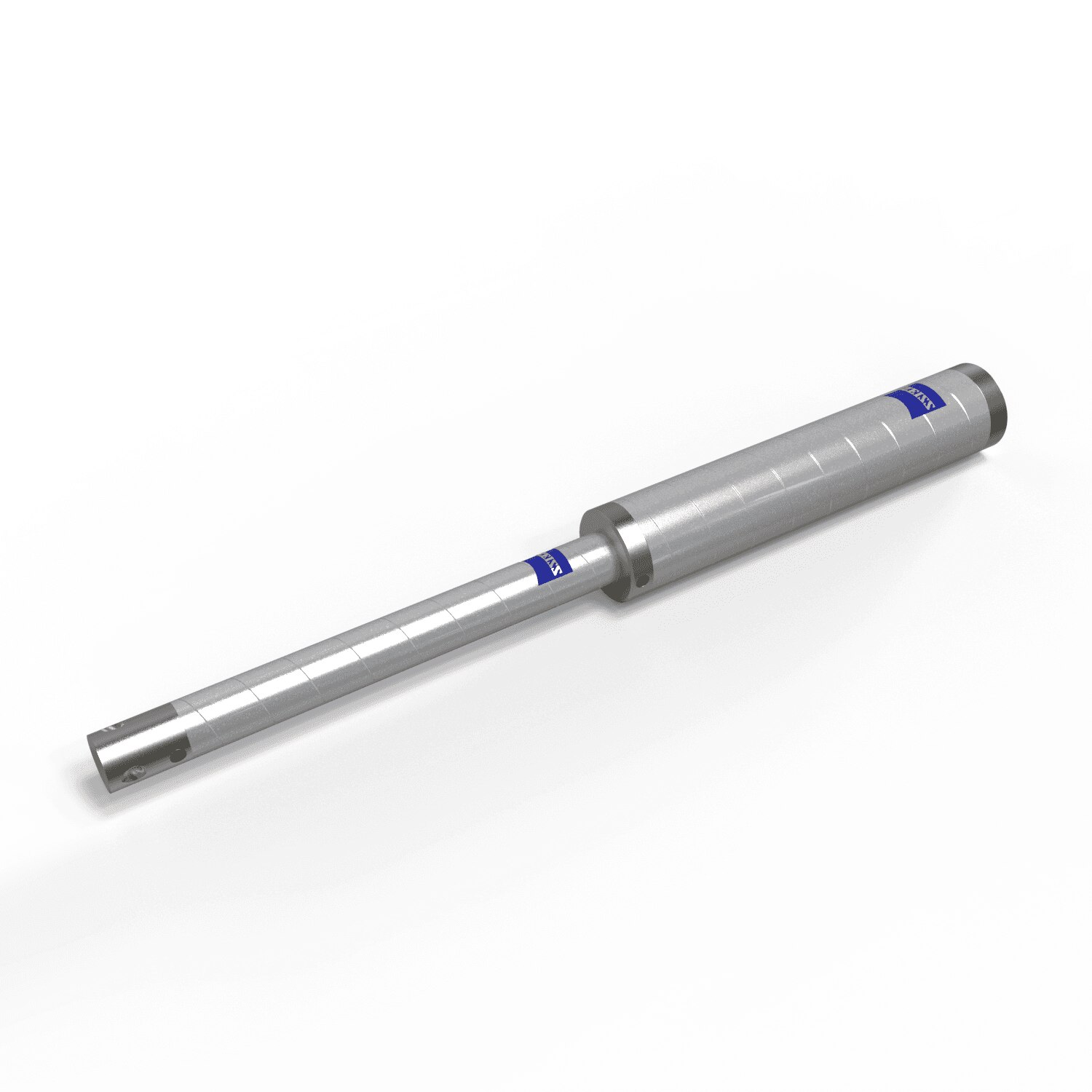

Extension stepped M5 Pro-DG20-L460-1x-CR
626107-4460-400
3.331,00 DKK
excluding VAT
Expected soon
Do you have questions?
System Integration
Extension type
Stylus Extension
Connection Type
M5 Pro
Connection Type Out
Cone Receiver

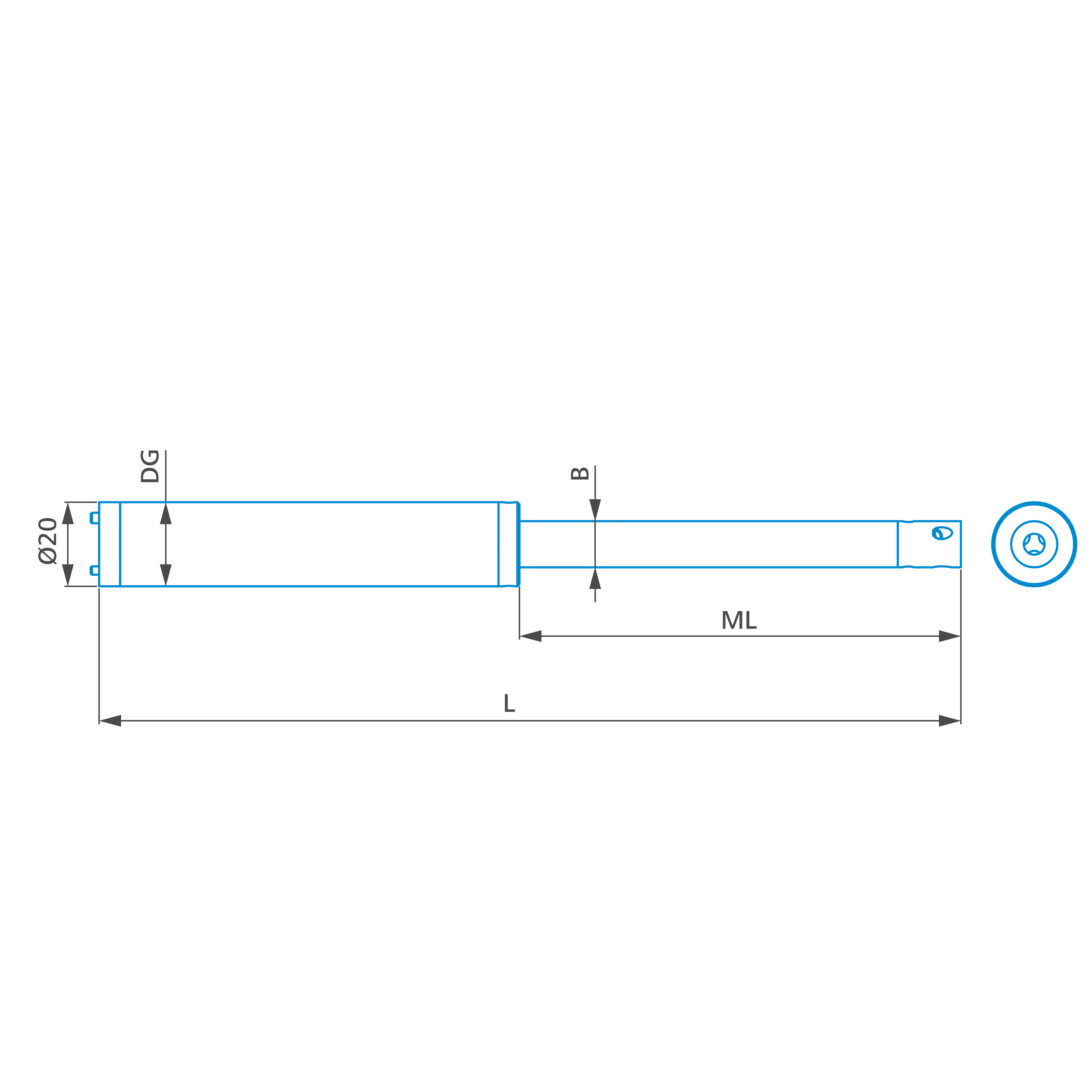

Primary Dimensions
Length (L)
460 mm
Ø Body (DG)
20 mm
Width (B)
11 mm
Accuracy level
Medium - CFX 3
Detailed Specifications
Material
Carbon Fiber
Weight
60 g
Measurement length (ML)
400 mm
Product note
ZEISS REACH CFX® 3 extensions are also available with the M5 pro connection system. In addition to the advantages of ZEISS carbon fiber technology, these extensions can be mounted in an easily reproducibly position. The index holes and matting pins also provide a torsion-free connector system. The patented solution is simple and safe - no special knowledge is required. The number of connection points are reduced and the probe system is arranged so that they cannot twist - thus increasing measuring accuracy and process reliability compared to standard M5 threaded systems. The positive is particularly noticeable in production measurements. REACH CFX® 1 and CFX® 5 extensions are available in the M5 pro version on request.
REACH CFX® 3 M5 pro extensions are designed with a base of Ø20 mm and two index pins to prevent them from rotating. The angular alignment on the cube always remains constant, even after multiple removal and attachment. At the end of each extension, a cone receiver for connecting rotatable components.
REACH CFX® 3 quality for most applications
With cone receiver for rotatable elements
M5 pro connection provides torsion-proof mounting
Lightweight - allows for complex stylus systems
Thermally stable - no thermal expansion and the associated measuring errors
Maximum rigidity enables faster scanning without loss of precision
Stepped design for optimum accessibility with greater rigidity
Carbon fiber tubes - developed by ZEISS
