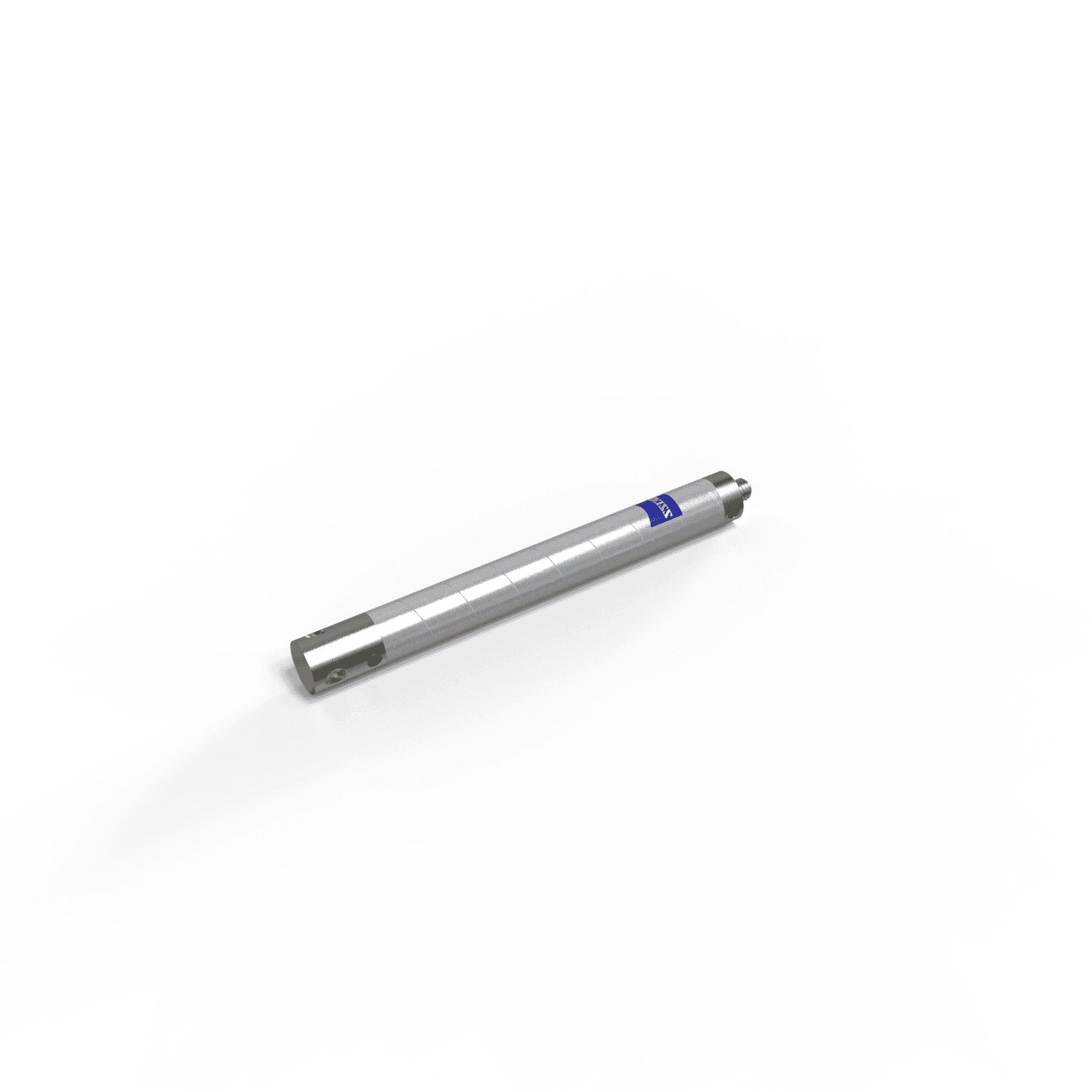

Extension M5-DG11-L160-1x-CR
626107-1160-105
1.377,00 DKK
excluding VAT
In stock
Do you have questions?
System Integration
Extension type
Stylus Extension
Connection Type
M5
Connection Type Out
Cone Receiver

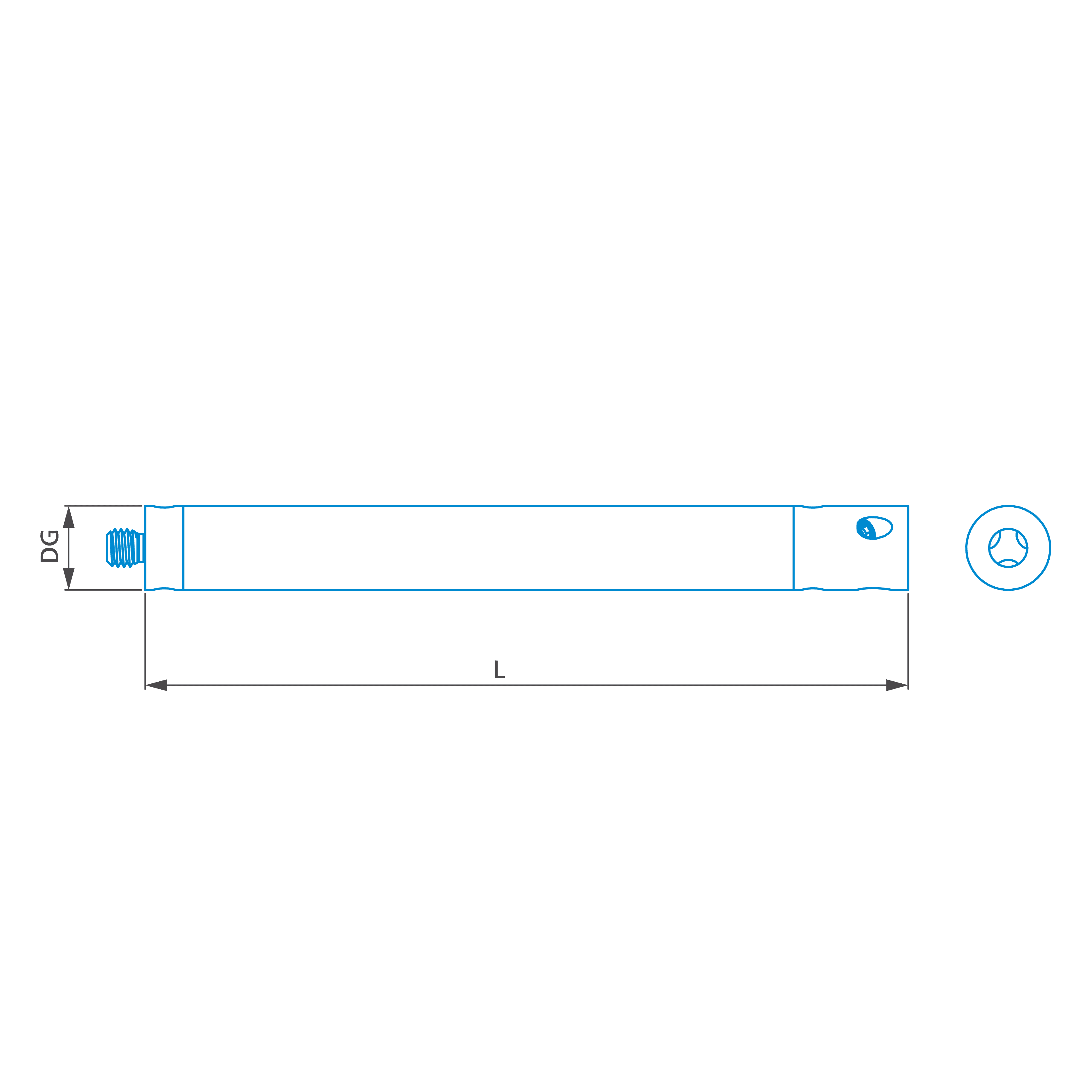

Primary Dimensions
Length (L)
160 mm
Ø Body (DG)
11 mm
Accuracy level
Medium - CFX 3
Detailed Specifications
Material
Carbon Fiber
Weight
21 g
Product note
ZEISS REACH CFX® extensions are available in three quality levels, adapted to the respective metrology application. REACH CFX® 1 achieves up to 40% greater rigidity than titanium extensions. REACH CFX® 3 is specially wound from a high-quality carbon fiber with several layers. Rigidity is up to 30% greater than REACH CFX® 1 REACH CFX® 5 is wound from a special high-end carbon fiber and can achieve up to 30% greater rigidity than REACH CFX® 3
Thermally stable standard extension, for most applications. REACH CFX® 3 extensions have a very high level of rigidity which enables reproducible measurements even at high scanning speeds. With cone receiver for connecting rotatable components such as cubes or angle pieces.
REACH CFX® 3 quality for most applications
With special receiver for rotatable elements
Lightweight - allows for complex stylus systems
Thermally stable - no thermal expansion and the associated measuring errors
Maximum rigidity enables faster scanning without loss of precision
Carbon fiber tubes - developed by ZEISS
