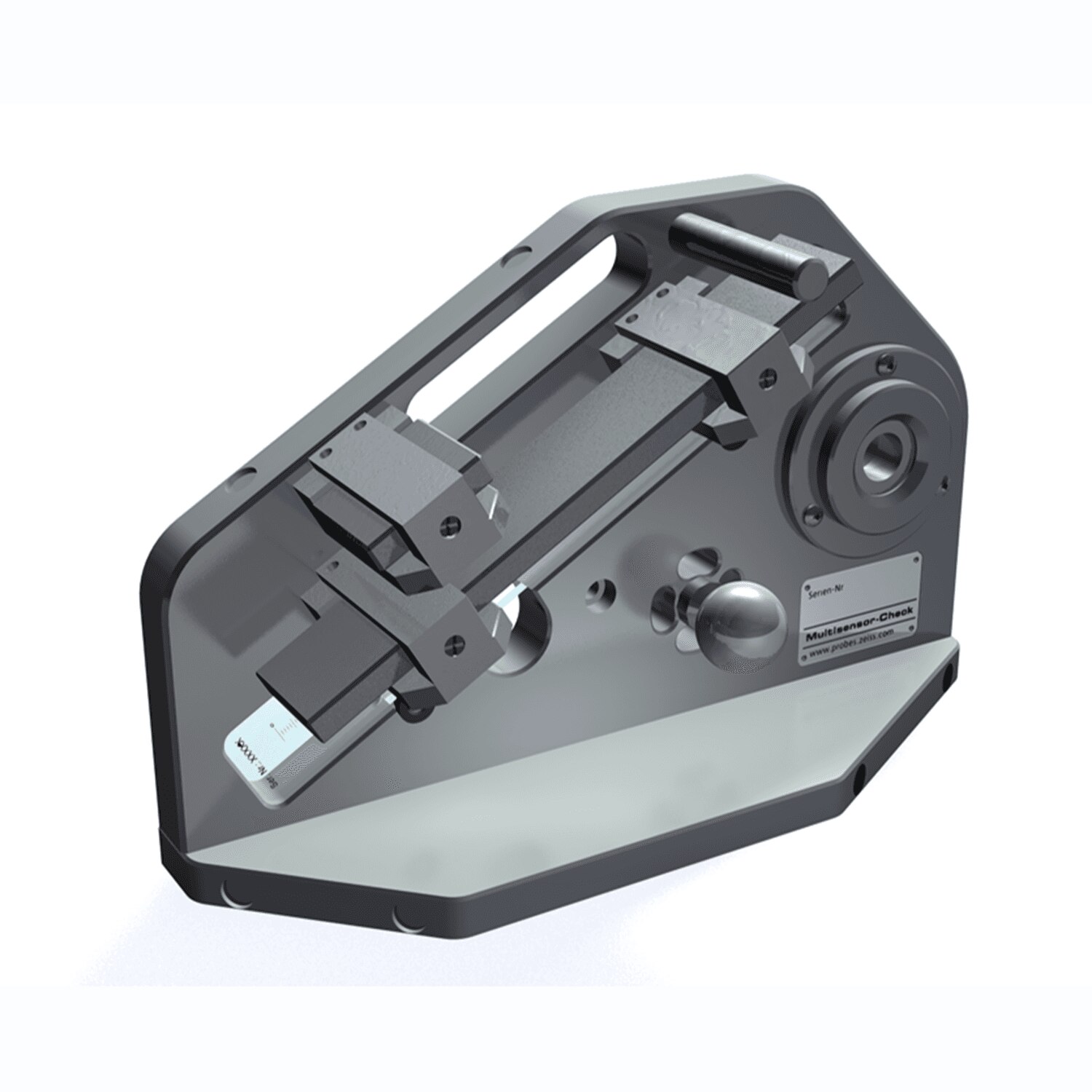

O-INSPECT-Check 1.0 Artifact (Software not included)
626106-9355-508
94.789,00 DKK
excluding VAT
Longer delivery time
Do you have questions?
Overall
Product type
Artifacts
Application
Check
Machine
O-INSPECT
Details
Suitable for O-INSPECT 543 and 863 CMMs
- Not suitable for O-INSPECT 322 , O-DETECT or O-INSPECT duo and O-INSPECT with scout sensors.
- Package includes:
- - 2 Gauge Blocks, Length 50, and 200 mm
- - Setting ring for tactile and optical measurements, diameter 16 mm
- - Sphere, Diameter 25 mm
- - Glass scale with graduated markings and circles, length 200 mm
- - Robust transport case with lock and foam insert
- - Accredited calibration of all standards in accordance with DIN EN ISO/IEC 17025
- Remote online training (626106-9355-641) is also available for an additional cost.
Product note
Not suitable for O-INSPECT duo and O-INSPECT with scout sensors. CMM Monitoring Tool evaluation software is sold separately. Product ID 626001-0830-020. A PC Bonded software license is required for each VMM. It is recommended to calibrate this artifact every two years.
O-INSPECT-Check 1.0 is a complete artifact and software solution used to verify and monitor the accuracy of Optical VMMs between annual calibrations. Checking the CMM accuracy can be added to a quality routine or performed after collisions, environmental changes or system changes. The check provides immediate notice of accuracy errors.
Specially developed for the ZEISS O-INSPECT
Artifact and calibration from a single source
Inspection of the optical and tactile sensor
Selected standards with high accuracy
Easy handling thanks to compact design
