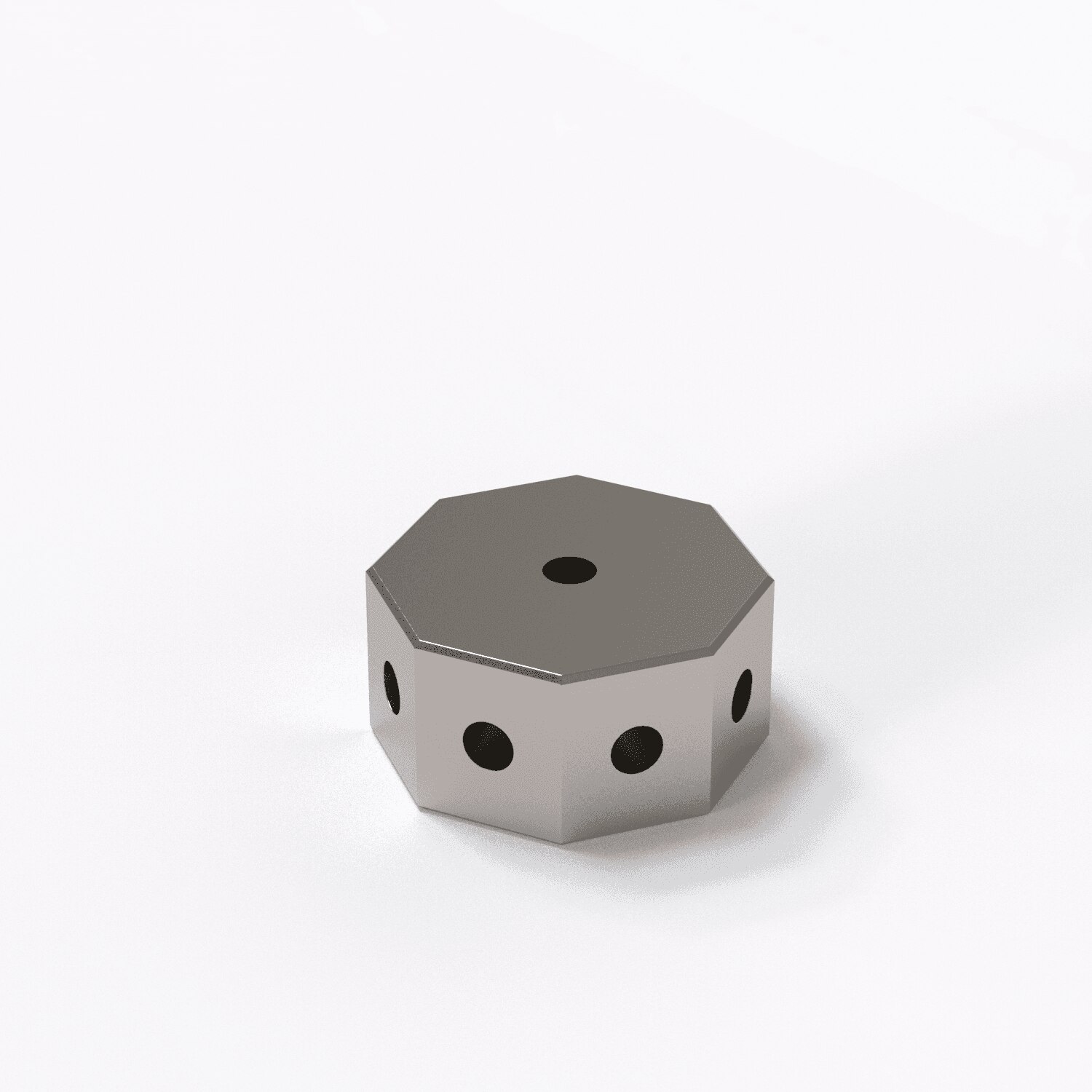

Cube, M5 8 sided, Titanium
626105-6110-000
1.553,00 DKK
excluding VAT
In stock
Do you have questions?
System Integration
Connection Type
M5
Connection Type Out
M5

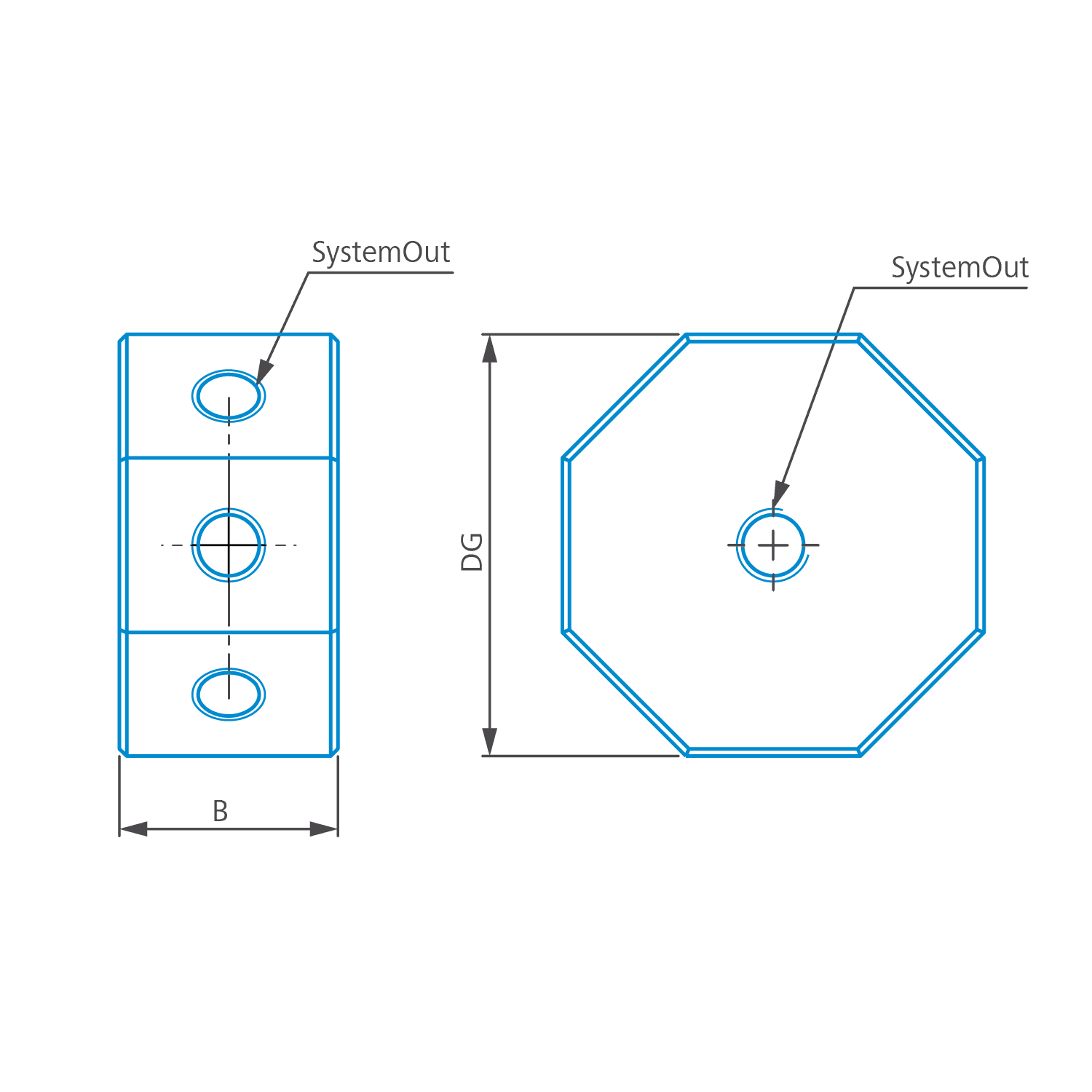

Primary Dimensions
Width (B)
15 mm
Ø Body (DG)
29 mm
Detailed Specifications
Material
Titanium
Weight
39,6 g
Number positions
8
Angle 1(W1)
45°
Product note
Multiple holders for styli with or without thread are used to create complex probe arrangements or star styli from standard elements. The advantage is the comparatively low cost compared to special probes and the flexibility when making changes to the measuring task.
8-fold angle piece with 45° pitch. Screw-on surface at right angles to the main axis
Made from a high-quality titanium alloy
Low weight combined with high rigidity
Suitable for gear measurements
