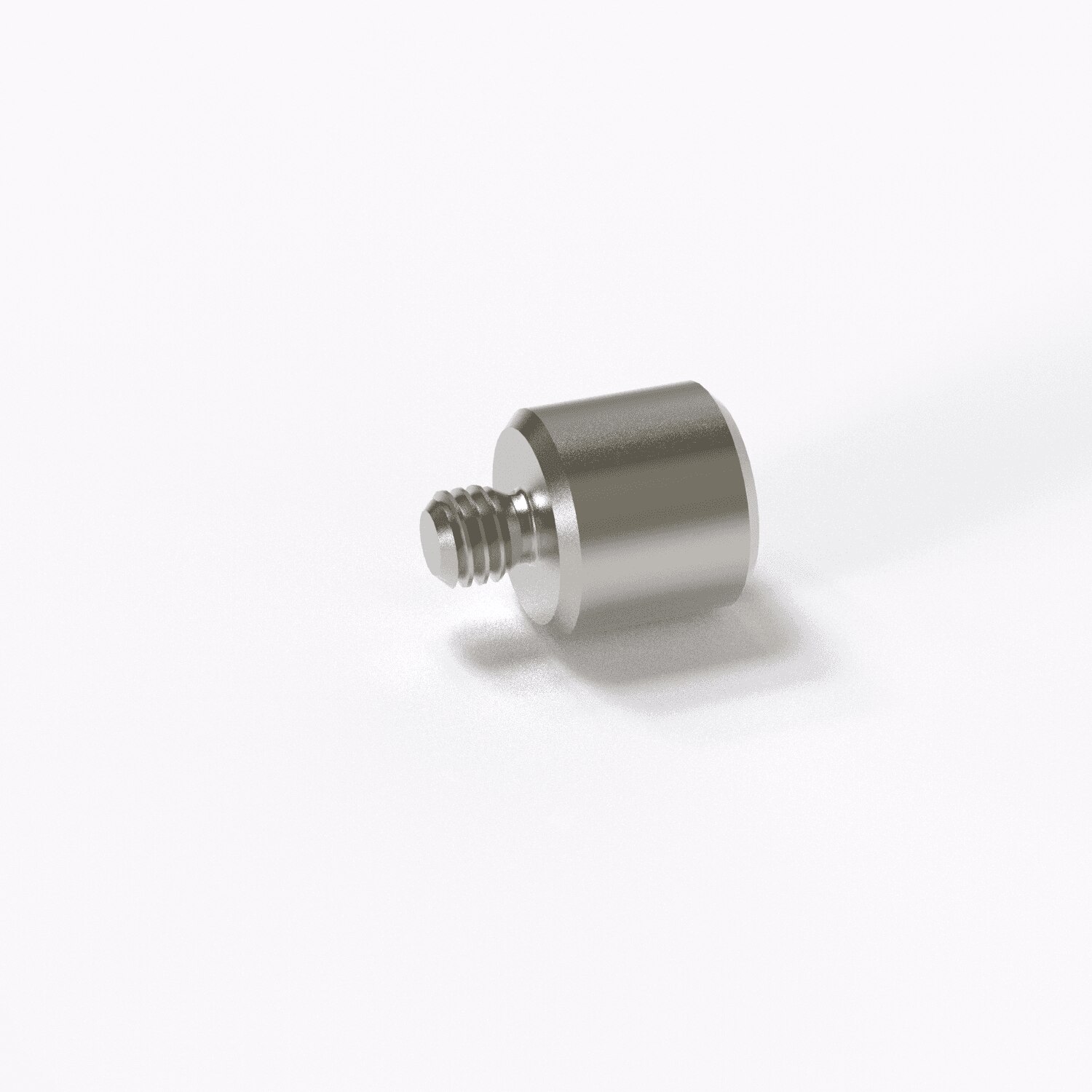

Counterweight for stylus systems, 3g
626103-6270-001
607,00 DKK
excluding VAT
In stock
Do you have questions?
System Integration
Connection Type
M3 XXT
Primary Dimensions
Weight
3 g
Length (L)
9,6 mm
Ø Body (DG)
7 mm
Detailed Specifications
Material
Steel
Weight
3 g
Product note
It is not only the pure weight of the stylus system that plays a role in the load-bearing capacity of the probe head. Above all, a high tilting moment due to a one-sided design of the probe systems must be avoided. To avoid such tilting moments, it is advisable to use a counterweight that can compensate for one-sided deflection. However, the total weight of the stylus system must also be taken into account when using a counterweight.
Counterweight to compensate for tilting moments in single-sided stylus systems
Clearly defined weight
Can be used for different applications by changing the leverage ratio.
With exact weight specification
