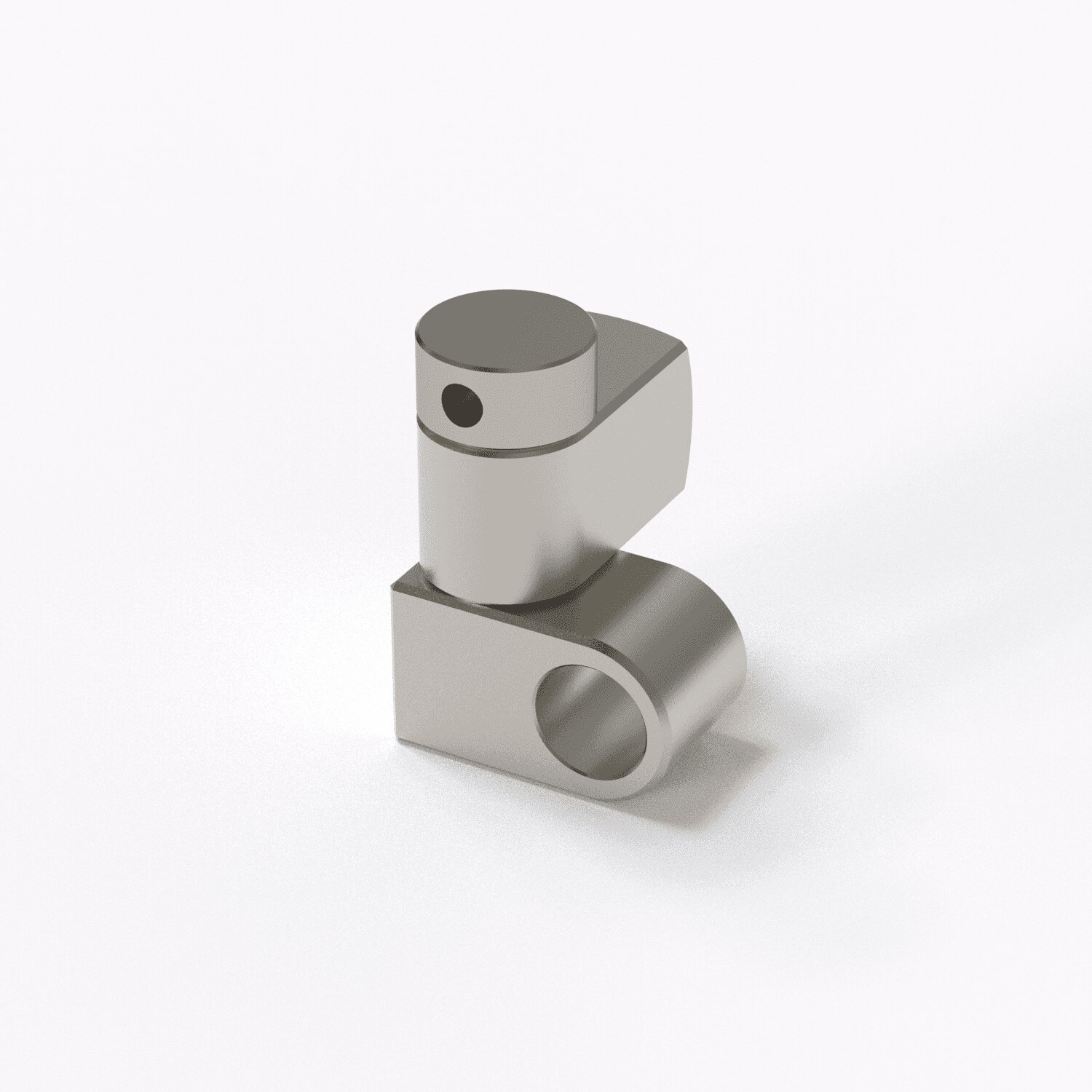

Offset rotating knuckle joint, M3 XXT
626103-6180-001
839,00 DKK
excluding VAT
In stock
Do you have questions?
System Integration
Connection Type
M3 XXT
Connection Type Out
M3 XXT

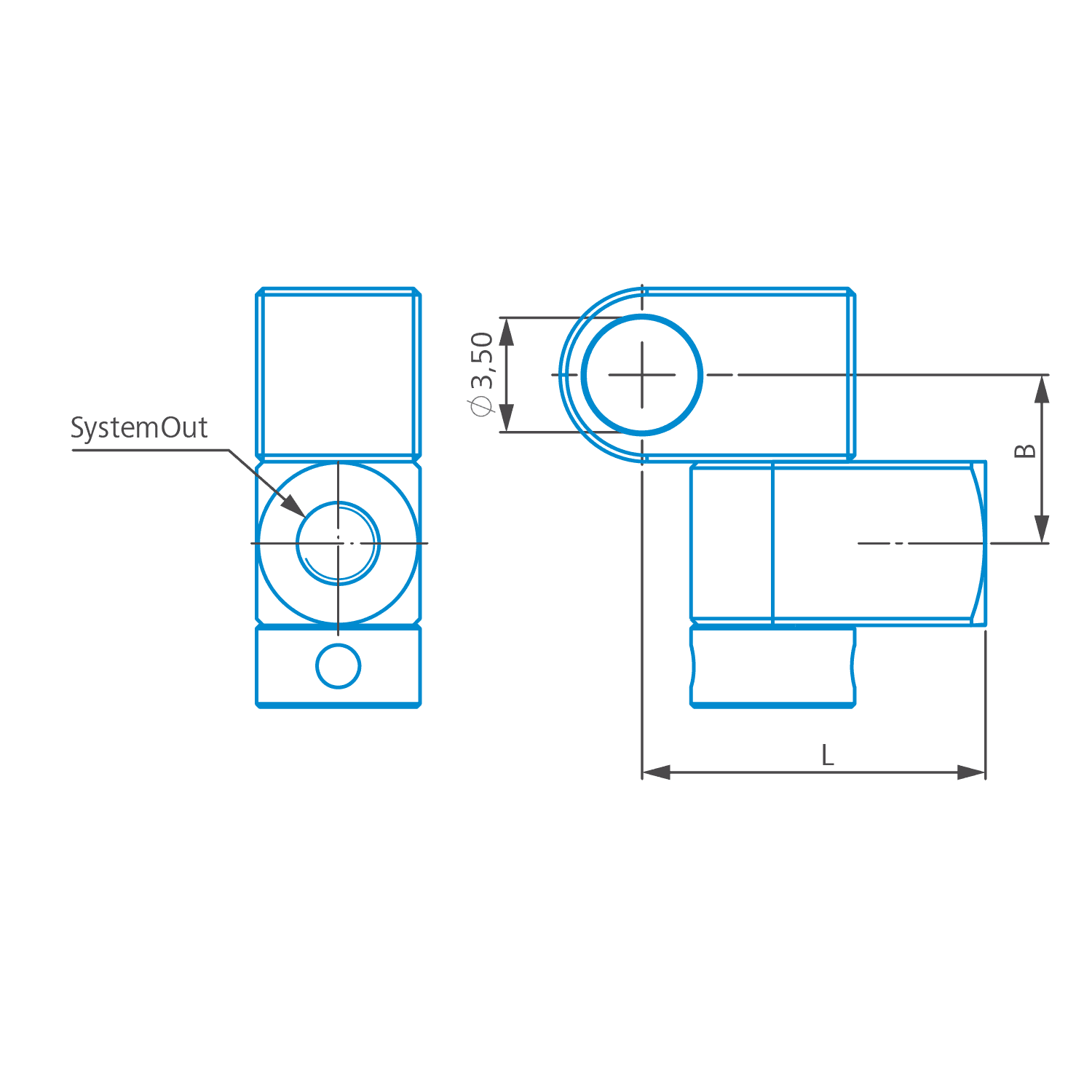

Primary Dimensions
Length (L)
10 mm
Width (B)
5 mm
Detailed Specifications
Material
Titanium
Weight
1 g
Product note
Due to their simplicity, first-generation rotary and rotary-knuckle elements are the most common fasteners on the market in the M3 XXT system. However, due to the offset connections and the difficulty in setting the angles due to the frictional forces of the screw, they have clear disadvantages compared to the elements of the second generation
The first generation of rotary knuckle elements are characterized by their simplicity. The different angular positions result from the rotation around the clamping screw
Made from a high-quality titanium alloy
Low weight combined with high rigidity
