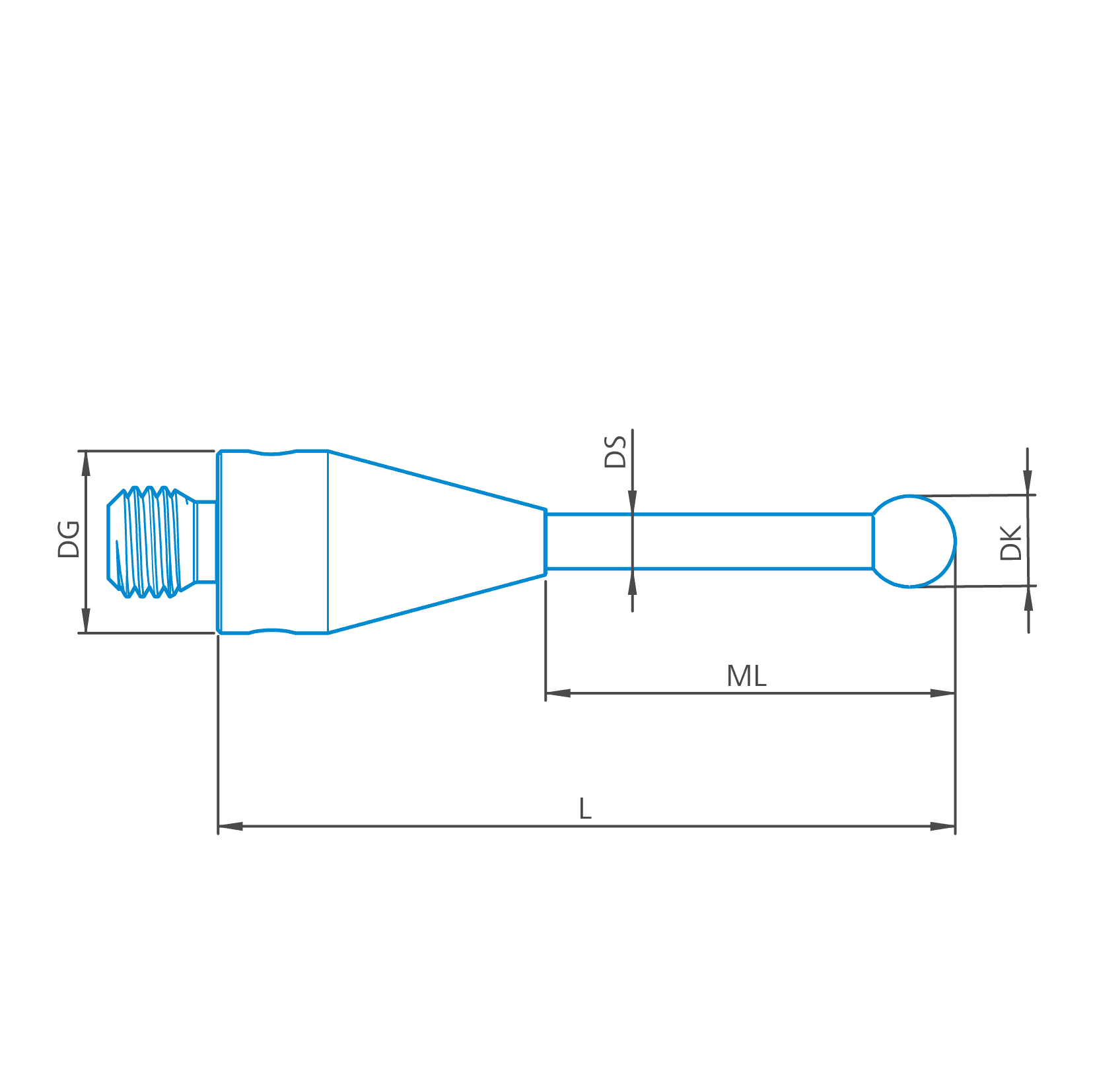

Stylus straight M3 XXT, DK2 L59
626103-0244-059
315,00 DKK
excluding VAT
Expected soon
Do you have questions?
Stylus tip
Diameter sphere (DK)
2 mm
Tip material
Ruby
Tip geometry
Sphere
Stylus shaft
Measurement length (ML)
50 mm
Shaft material
Tung. Carb.
Ø Shaft (DS)
1 mm
Overall
Length (L)
59 mm
Ø Body (DG)
5 mm
Weight
0,85 g
Stylus type
Straight
Connection Type
M3 XXT
Product note
It is not recommended to mix M3 REN elements with ZEISS XXT systems. The different base diameters may cause a loose connection, resulting in measuring errors. Depending on the material of the stylus and the workpiece, wear or material deposits may collect on the stylus. Therefore, regularly check your styli under a microscope and clean or replace them if damaged. Depending on the type and degree of contamination, a wide range of cleaning agents are available. ZEISS application engineers recommend stylus cleaning wipes or microfiber cloths.
Standard Styli suitable for all common measuring tasks. M3 thread for ZEISS VAST XXT sensors.
M3 XXT features a larger base diameter for greater rigidity
Ruby is the most versatile sphere material
Ruby spheres available from 0.2 up to 12 mm
Tungsten carbide shaft with high rigidity
Straight shaft with longer measuring length
Proven ZEISS quality through high-end manufacturing
