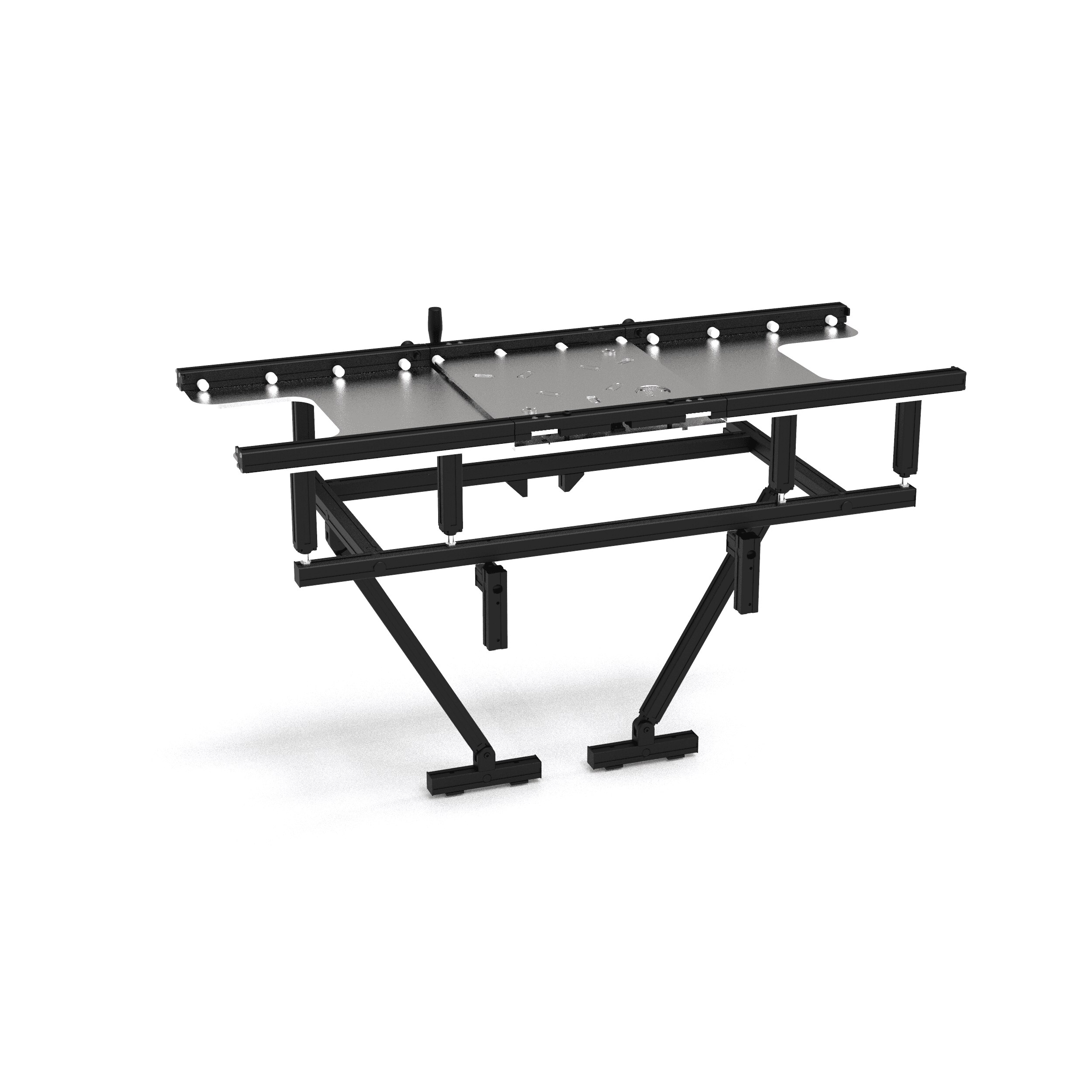

Pallet feed Duplex, standard, with TSI preparation for DuraMax 5/5/5 with standard base frame.

• ZEISS pallet feed Duplex for mounting of two pallets with the dimensions 500 mm x 500 mm.
• - Prepared for temperature sensor interface (TSI). Temperature sensors and interfaces are not included.
• - Installation height: 56 mm (reduction of measuring range in Z)
• - Maximum total load per pallet: 30 kg
• - Increase of the total maximum loading to 50 kg, unless setup is done during the measuring process
• - High throughput and machine capacity utilization due to simultaneous setup during the measuring process
• - Fast, ergonomic workpiece changevia a simple shift movement into the measuring volume
• - Safety ensured by pallet fixation equipment and unlocking lever
• - Safe, secure positioning via lowering onto three-point support
• - CMM protection by reciprocal lockingof pallet feed and CMM
• - Simple and direct screw connection on CMM
• - Incl. connection cable [Harting plug]
• - Documentation in English and German
