Cube, M3 4 sided
602030-8382-000
302,00 DKK
excluding VAT
In stock
Do you have questions?
System Integration
Connection Type
M3
Connection Type Out
M3

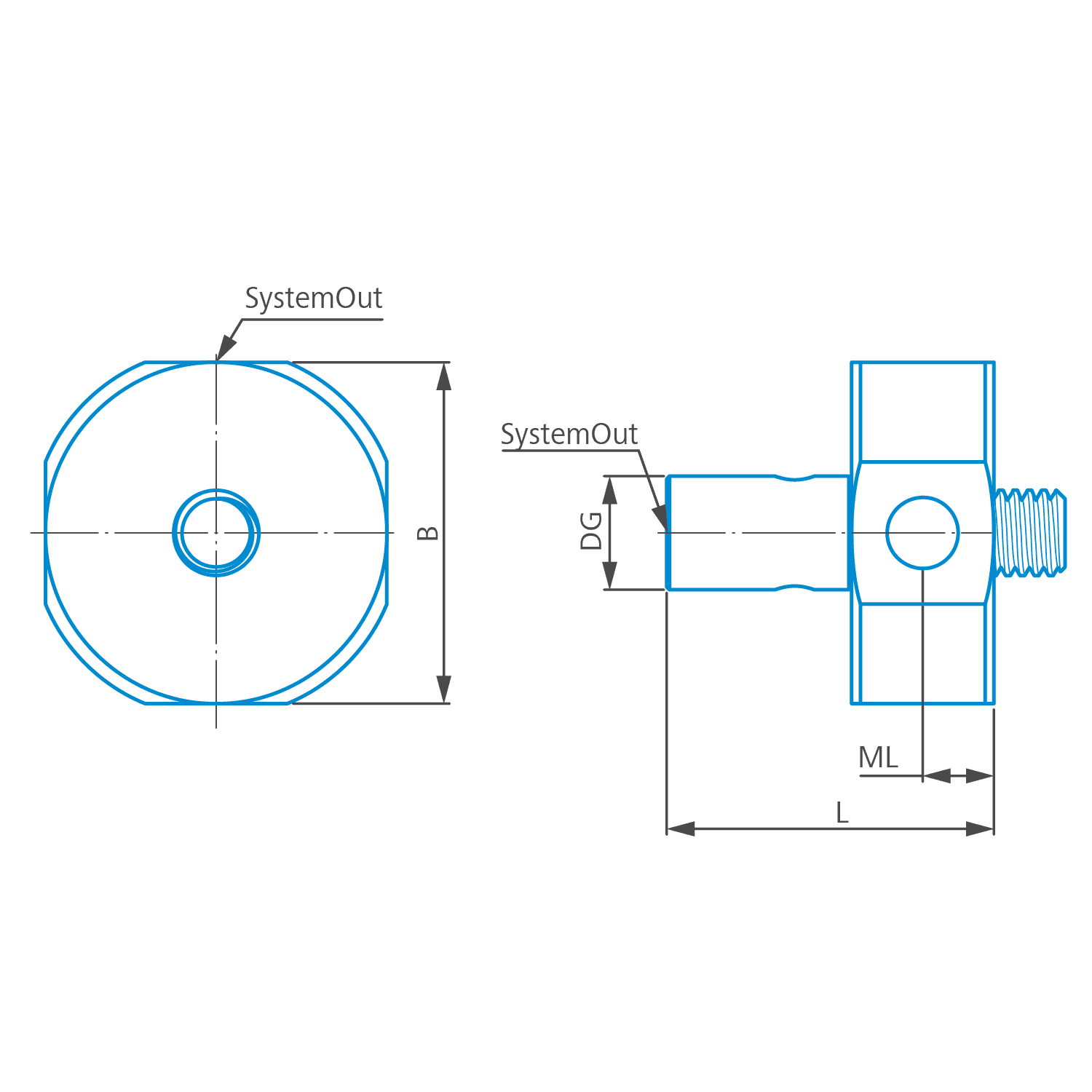

Primary Dimensions
Width (B)
12 mm
Length (L)
11,5 mm
Ø Body (DG)
4 mm
Detailed Specifications
Material
Steel
Weight
4 g
Number positions
5
Product note
It is not recommended to use M3 REN elements (with a diameter of 4 mm for touch trigger probes) without a suitable adapter on ZEISS XXT systems (with a diameter of 5 mm). The smaller diameter can lead to a loose connection, which can result in measurement errors.

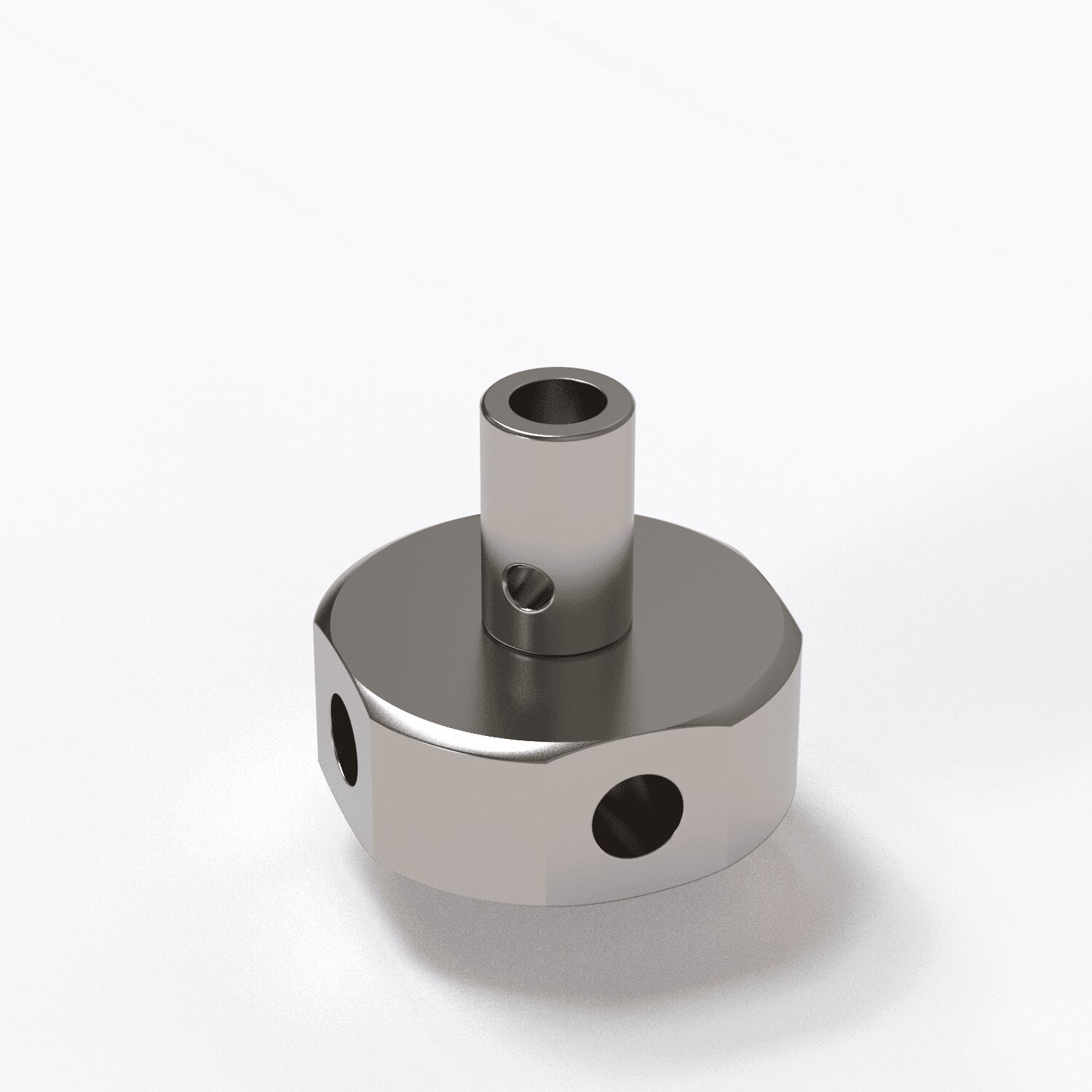

Cube with 4 M3 connections at a 90° angle and a further connection at the front, suitable for M3 REN elements with an outer diameter of 4 mm
Made from a high-quality titanium alloy
For the creation of star styli
