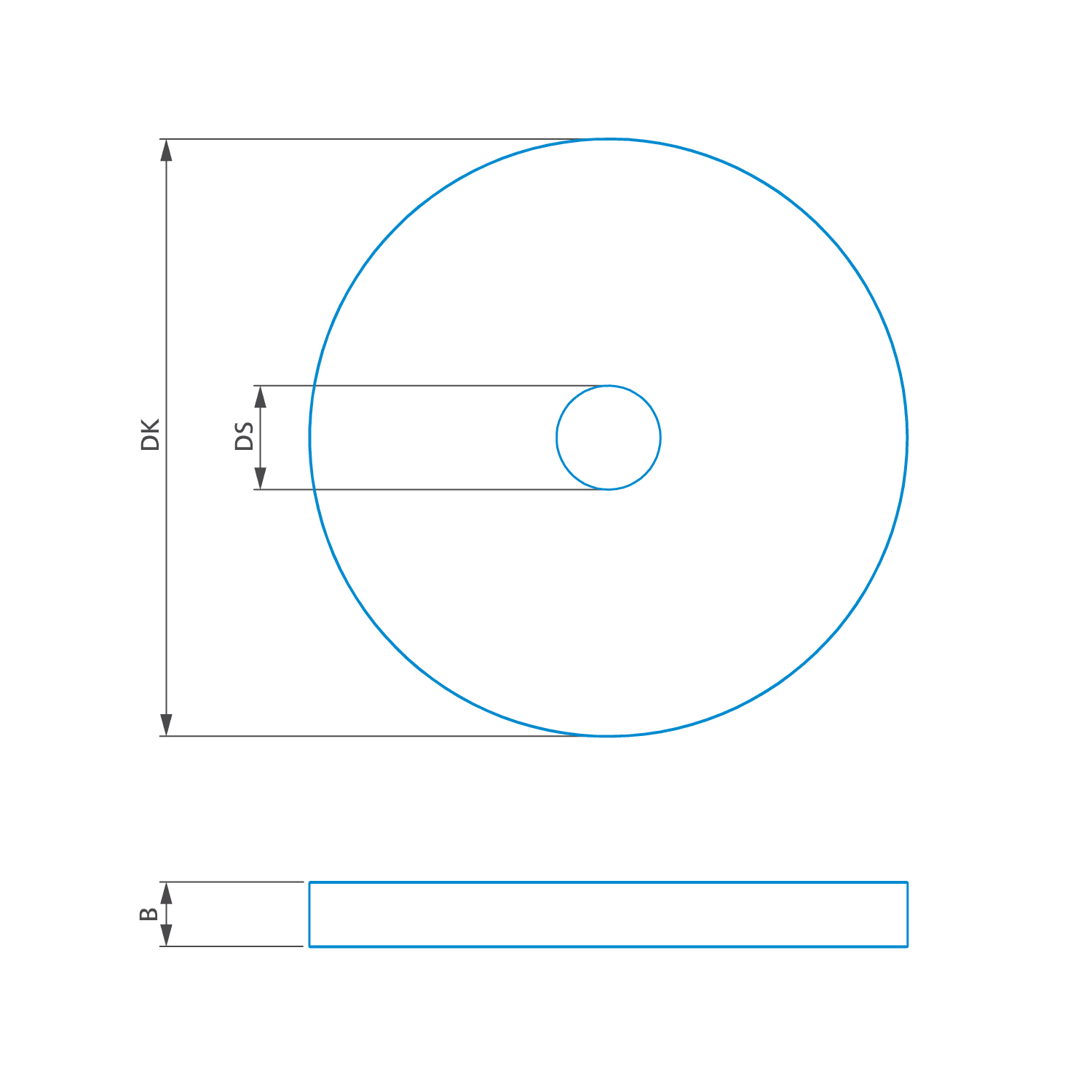

Disk M5, DK20
600341-0200-000
682,00 DKK
excluding VAT
Expected soon
Do you have questions?
Stylus tip
Diameter sphere (DK)
20 mm
Tip material
Steel
Tip geometry
Spherical Disk
Stylus shaft
Ø Shaft (DS)
8 mm
Width (B)
2 mm
Overall
Weight
4 g
Stylus type
Disk
Connection Type
M5
Product note
Depending on the material of the stylus and the workpiece, wear or material deposits may occur. Therefore, regularly check your styli under a microscope and remember to clean them or replace them if damaged. Depending on the type and degree of contamination, a wide range of cleaning agents are available for cleaning. ZEISS application engineers recommend stylus cleaning wipes or microfiber cloths.
Single disc to measure rotationally symmetrical workpieces with undercuts or recesses and cylinders. Stylus disks are primarily adapted to standard extensions.
Single disc for adaption to any system
Discs for grooves, undercuts in boreholes and similar
Stainless steel disc for special form and diameter
Proven ZEISS quality through high-end manufacturing
