Reference kit RSH-364 with reference sphere DK30 - standard
600332-9266-000
12.033,00 DKK
excluding VAT
In stock
Do you have questions?
Overall
Product type
Reference Set
Application
Tactile
Material
Stainl. St.
Tip material
Ceramic
Diameter sphere (DK)
30 mm
Number positions
1
Length (L)
364 mm
Details

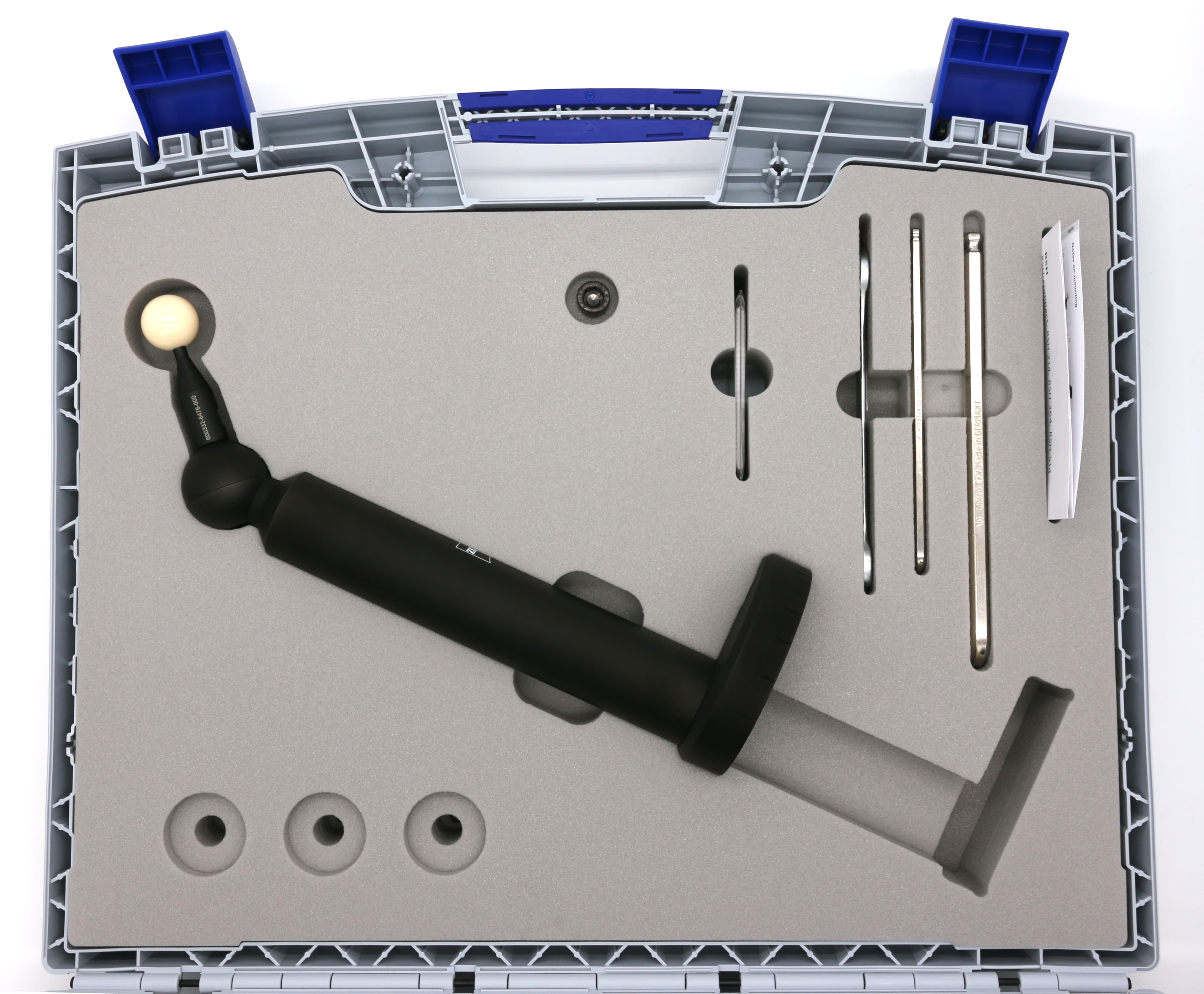

consisting of:

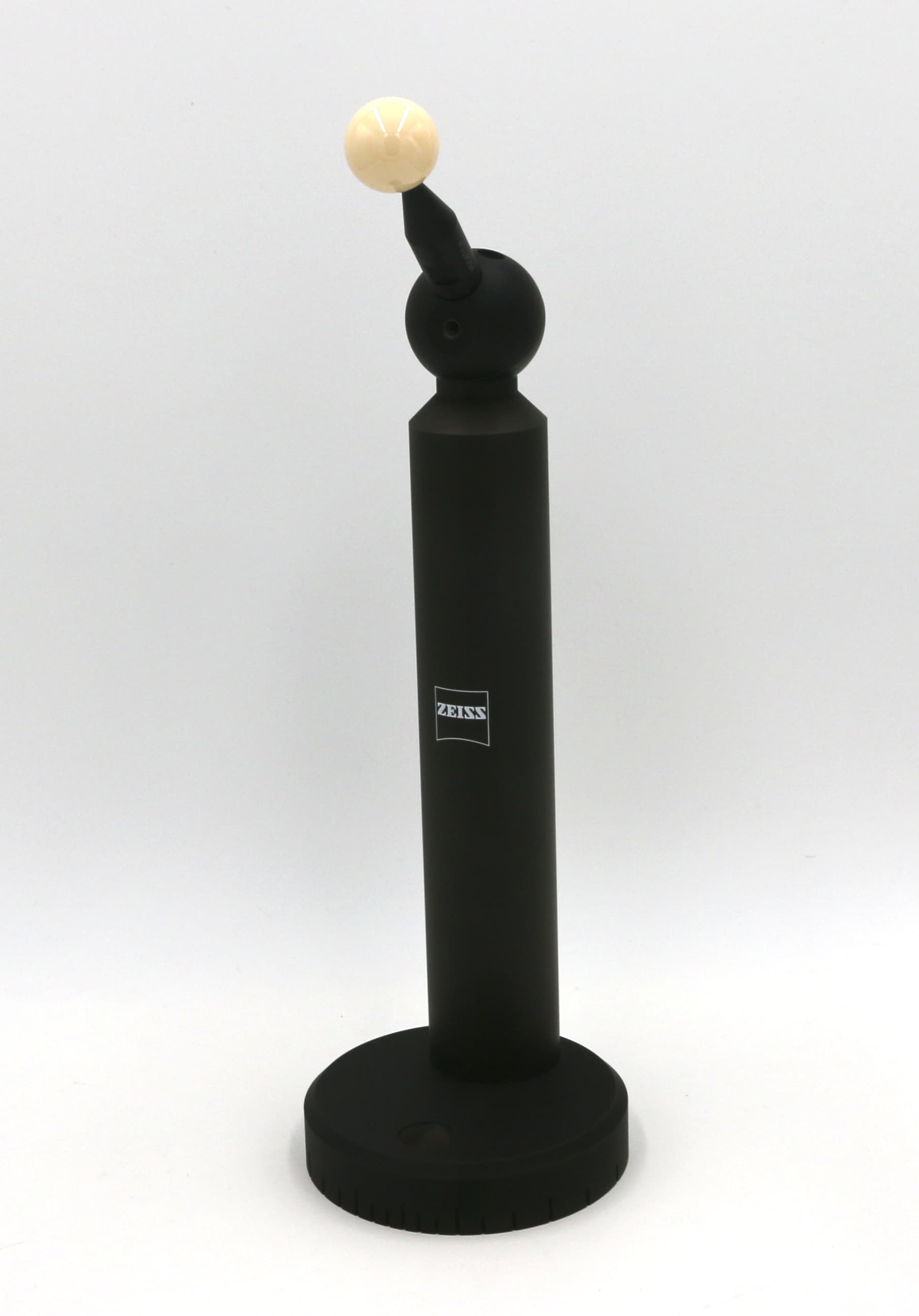

- - Reference sphere holder RSH-364
- - Mounting hardware for CMM base plates with M12 thread
- - Reference sphere Ø DK30 mm made of ceramic with shaft, M6 for RSH systems (600332-8446-000)
- - Calibration certificate
- - tool kit
- - in carrying case
Calibration set for tactile applications on coordinate measuring machines.
Complete set with tools and mounting material (incl. reference sphere)
Permanently stable holder for reference spheres (laboratory-tested)
Holder adjustable to different room angles
Total height of holder to center of sphere: approx. 364 mm
For attachment to table tops with M12 thread
