Reference stylus M2, DK3 L62
000000-1172-967
233,00 DKK
excluding VAT
In stock
Do you have questions?

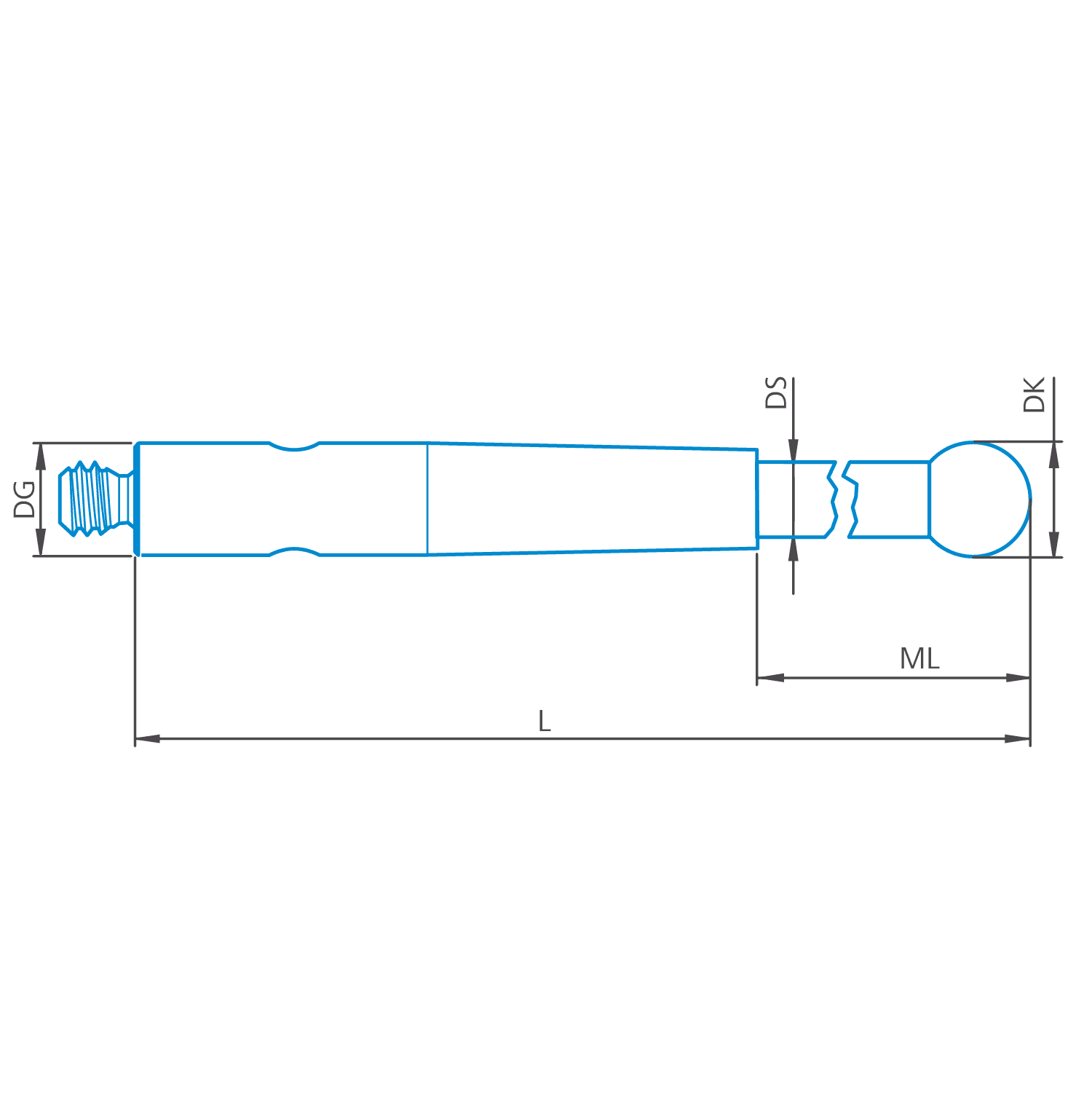

Stylus tip
Diameter sphere (DK)
3 mm
Tip material
Ruby
Tip geometry
Sphere
Stylus shaft
Measurement length (ML)
46 mm
Shaft material
Ceramic
Ø Shaft (DS)
2 mm
Overall
Length (L)
62 mm
Ø Body (DG)
3 mm
Weight
1,34 g
Stylus type
Straight
Connection Type
M2
Product note
Depending on the material of the stylus and the workpiece, wear or material deposits may collect on the stylus. Therefore, regularly check your styli under a microscope and clean or replace them if damaged. Depending on the type and degree of contamination, a wide range of cleaning agents are available. ZEISS application engineers recommend stylus cleaning wipes or microfiber cloths.
Reference Styli are used to determine the position of calibration reference spheres. M2 threads are common for Renishaw touch sensors.
High end ruby sphere for special reference tasks
Marked with a red dot on the base
Ceramic shaft for low weight and high stiffness
Straight shaft with longer measuring length
Proven ZEISS quality through high-end manufacturing
