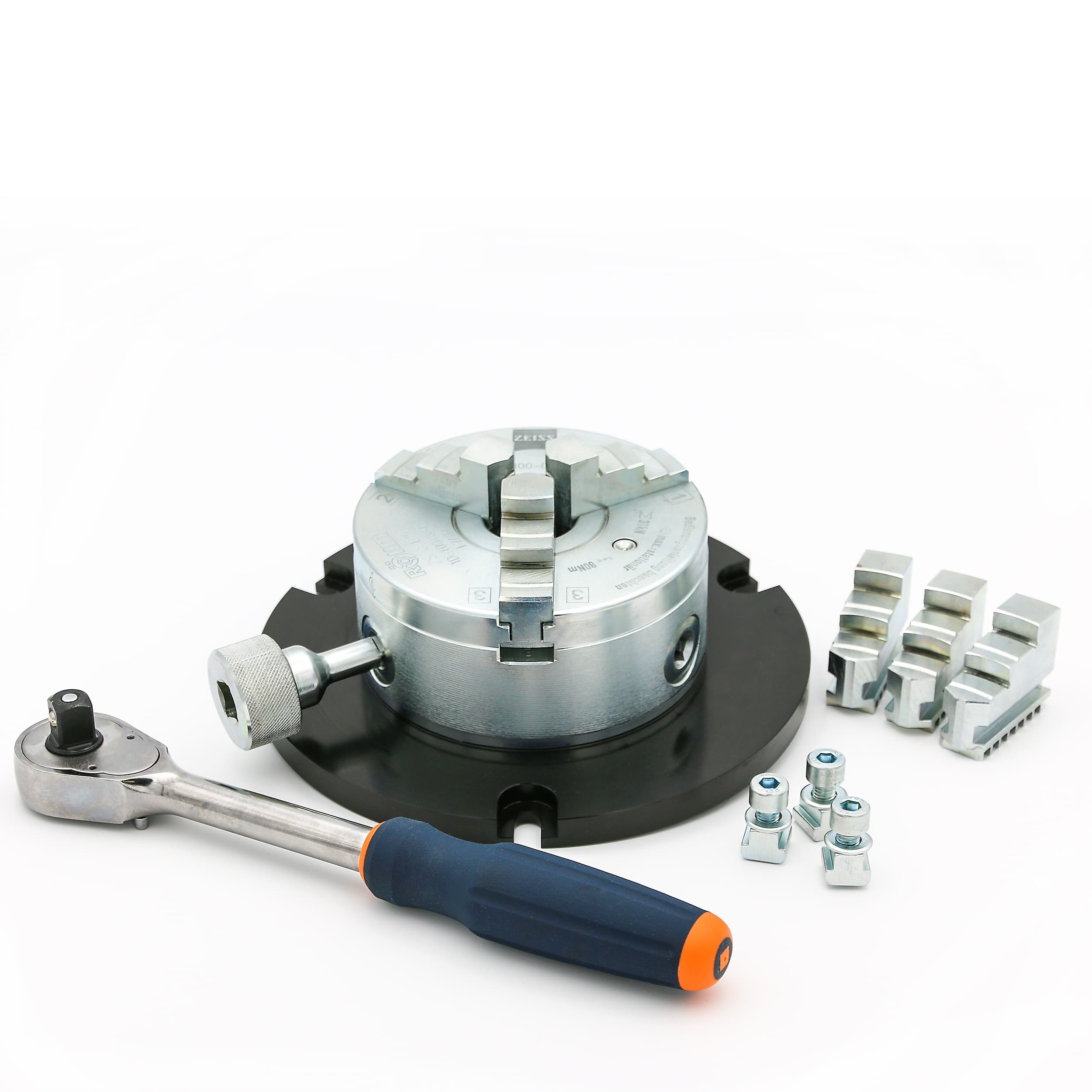

OmniFix three-jaw chuck DIN 6350 for rotary table application Ø125 mm
000000-0642-565
19.294,00 DKK
excluding VAT
In stock
Do you have questions?
Overall
Product type
3 Jaw Chuck
Application
Mount
Material
Steel
Details
- Body made of high-strength steel, corrosion protected, silver
- - Outer diameter Ø125 mm
- - Through hole Ø32 mm
- - Height base body 69 mm
- - Clamping tool, steel, galvanized
- - Outer diameter approx. 36 mm, length approx. 20 mm
- - Repeat clamping accuracy 0.025 mm
- - Torque max. 80 Nm
- - Total clamping force max.31±15% kN
- - Weight approx. 5.5 kg
- - Clamping range: Turning jaws 3 – 125 mm, Drill jaws 3 – 123 mm
- - Largest swing diameter (with max. clamping diameter) 157 mm
- - Adapter plate made of aluminium, hard coated, black
- - Outer diameter 200 mmFastening possibility with M8 - Ø180 mm / 120°
- Scope of delivery:
- - 1 set = 3 drilling jaws, corrosion-protected, stepped outwards
- - 1 set = 3 rotating jaws, corrosion-protected, stepped inwards
- - 1 turnbuckle 4-kt- SW8 - ½ knurled
- - 1 ratchet ½ switchable
- - 1 set of M8 mounting screws with sliding blocks
Product note
ZEISS chucks are tested by our application engineers on ZEISS machines and guarantee the best possible measuring accuracy. The components to be measured are optimally fixed at all times so that a reliable sequence of the measuring programs is guaranteed. To maintain the function and quality of the chuck, it must be serviced at regular intervals. Chuck must be as free of fast and silicone as possible.
Three-jaw chucks are mainly used for clamping cylindrical or ring-shaped parts at higher clamping forces. Due to the radial clamping of rim-type chucks, damage to the rotary table can occur at higher forces. Due to the central clamping via a kind of knurled nut, which is inserted into the inner square of the chuck, no radial forces occur. This means that the components can be clamped exactly with the required clamping force. With interchangeable jaws you can easily adapt the lathe chuck to your requirements. Special jaws manufactured in-house can also be adapted. The versions with a base plate allow easy mounting on ZEISS rotary tables.
3-jaw ring chuck for rotary table applications
Extremly flat design
Optimal accessibility
With adapter plate for ZEISS rotary tables
Optimum flexibility through the use of interchangeable jaws
